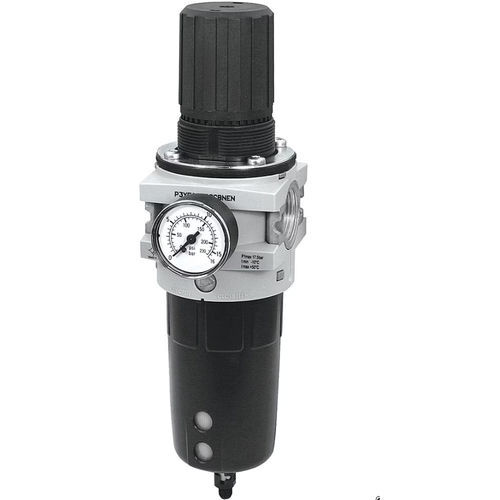

Large air volume air treatment unit P3YE

modular

Parker's P3YE is a particulate filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. P3YE is a one piece combined filter/regulator which minimises space and piping by incorporating two units into one. The P3YE is designed to provide quick response and accurate pressure regulation for the most demanding hi-flow industrial applications. The rolling diaphragm was designed for long, trouble free operation and will not rupture or tear under high cycle or other demanding applications. The P3YE is also specially designed to efficiently filter out rust, dirt, moisture and other impurities from compressed air lines. Operation is fully automatic with a minimum of pressure drop. Markets: • MRO • Tier1 System Providers • Material Handling Systems • Coating/ Ink / Paint • Plastic Processing • Industrial Chemical Processing • Food and Beverage Features/Benefits: • Integral 3/4" or 1" ports (BSPP or NPT) • High efficiency element as standard • Excellent water removal efficiency • Robust but lightweight aluminium construction • Secondary pressure ranges 12 and 16 bar • Rolling diaphragm for extended life • Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation • Reverse flow / relieving option • Low temperature -40°C (-40°F) with combined manual / semi-auto drain as standard
