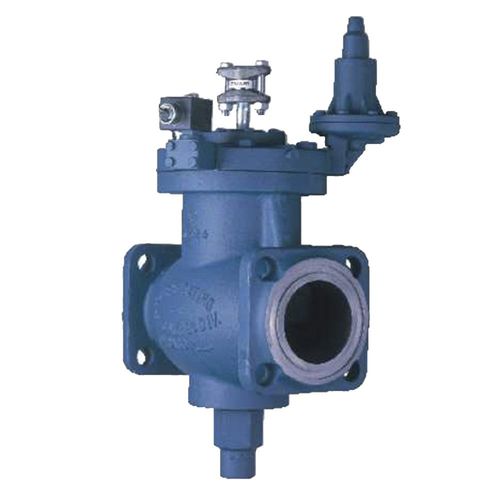

Piston valve CK5 series

manualstopfor gas

The CK-5 gas-powered suction stop valve provides the normal operating features of the R/S CK-2 suction stop valve and features a built-in failsafe to close the valve until pressure is equalized in the event of a power loss. These valves are piston-type, gas powered, and normally open. They are heavy duty, semi-steel bodied valves that are built with control precision. The 32mm (1-1/4”) port size has a PTFE main seat, the 40mm (1-5/8”) port and larger have a metal to metal seat, the 100mm and 125mm (5” and 6”) port size versions of this unique suction stop valve utilize a larger capacity, remotely piped pilot operated solenoid, the R/S type S8F. In addition, the pilot regulator for these two larger sized valves is mounted on top of valve, with the strainer disc assembly piped into the side of the adapter. Markets: • Commercial Refrigeration Features and Benefits: • Normally Open • Features a pilot regulator to ensure pressure equalization in the event of a power loss • Integrated Pilot Solenoid on 32mm to 100mm (1-1/4” to 4”) Sizes • Use in Vertical or Horizontal Line • Valve may be mounted on its side • Requires lubricant-free pilot flow at evaporator temperatures below -25°F(-30°C) Application: • Hot Gas Defrost • Suction Stop Valve
