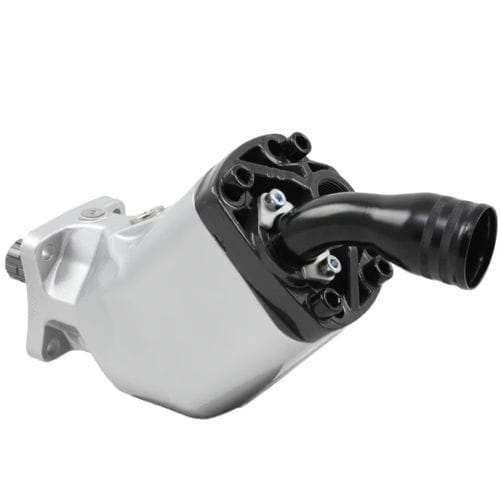

Hydraulic piston pump F1

aluminumfor vehiclesmounting flange

Parker’s hydraulic truck pump series F1 featuring high self-priming speed and high efficiency and is one of the leading truck pumps in the market. The F1 pump provide circuit reliability at speeds up to 3050 rpm at 400 bar (5,800 psi). The F1 hydraulic pump is a very efficient and straight forward pump design with unsurpassed reliability. Its small envelope size gives a simple and inexpensive installation. Rigorous product testing and continuous product development help to ensure our hydraulic pumps operate at optimum efficiency and can perform in the most demanding environments. Markets • Mobile • Transportation Features/Benefits: • Displacement from 12 - 102.9 cc – support various applications. • High selfpriming speeds – increased productivity. • High overall efficiency – increased reliability. • Low weight – low bending torque on PTO, easy to install. • Laminated piston rings – low leakage resulting in more uptime. • Installation above the reservoir level possible – flexibility in installation. • Shaft end and mounting flange meet ISO and SAE standards. • Small installation dimensions – fits wide range of applications. • Tolerates low and high temperature shocks – suitable for the most demanding environments. Applications: • Cargo cranes • Hook loaders • Skip loaders • Forestry cranes • Multipurpose vehicles We have included in above configurator part numbers for our F1 hydraulic pump, please download our latest catalogue under Product Support for the latest information/updates or contact your local Parker Dealer for support.
