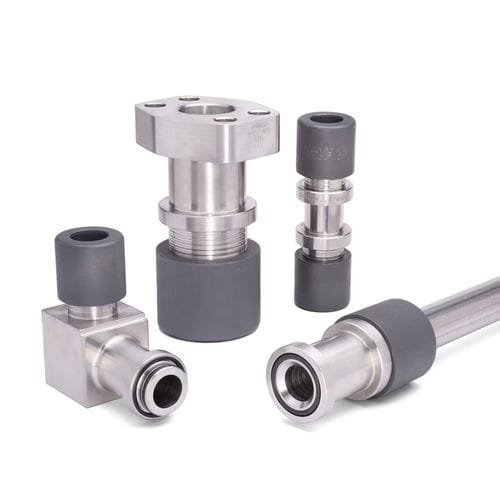

Hydraulic fitting PH-12P-12G5-FS-SS

crimpISOstainless steel

Phastite® for Pipe meets the demands of pressure-cycling fluid power systems in energy and industrial applications. Permanent leak-free piping connections are created in minutes rather than the hours it takes for welded piping connections. Markets • Offshore oil & gas - subsea and topside • Land-based oil & gas • Industrial and in-plant • Process piping (ASME B31.3) • Industrial Refrigeration (ASME B31.5) • Chemical Processing Plants (ASME B31.3) • Nuclear Power (BPVC) • Power Generation (ASME B31.1) • Wind and solar energy • Compressed natural gas • Industrial fire suppression systems (ASME B31.9) Features/Benefits: • Designed for hydraulic, water-based systems, lube/ grease, and other media • Used with standard ASTM A312/ISO 6708 schedule pipe sizes 3/4" to 2" (DN20 to DN50) • Proven to perform in operating pressures up to 10,000 psi/70 MPa • Rated at subsea depths of 15,000 ft/4600 m • Fully compatible with Sch 40/ STD through Sch XXS pipe • Fully heat code traceable (HCT) • Phastite bodies are manufactured from 316/316L stainless steel. The Phastite collar is manufactured from 2205 duplex stainless steel. • Compliant with ASME B31.1 and B31.3 piping codes • Tested to ASTM F1387 and multiple industry-specific performance tests • Tested to DNV GL RP-A203 technical qualification (TQ)
