3-axis machining center DINAMIKA5-axis6-axisuniversal
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 6-axis
- Spindle orientation
- universal
- Machined material
- for steel, for aluminum, for titanium alloys, for light alloys, for stainless steel, for composites
- Structure
- traveling-column, with rotary table, with rotary-translating table
- Spindle mount
- HSK-63-A, ISO 5, ISO 40, HSK-100-A
- Associated functions
- milling, turning
- Applications
- heavy-duty, for large workpieces, for the automobile industry, for the aerospace industry, for molds, for aeronautics, for heavy-duty machining, for the mold industry, for the aluminum industry, for heavy loads
- Other characteristics
- high-speed, high-performance, high-precision, high feed rate, high-rigidity, high-power
- X travel
Min.: 4,500 mm
(177.17 in)Max.: 20,500 mm
(807.09 in)- Y travel
Min.: 1,600 mm
(62.99 in)Max.: 1,800 mm
(70.87 in)- Z travel
Min.: 2,600 mm
(102.36 in)Max.: 4,100 mm
(161.42 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 22,000 rpm
(138,230 rad.min-1)- Power
Min.: 0 kW
(0 hp)Max.: 60 kW
(81.58 hp)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 30,000 mm/min
(19.69 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 30,000 mm/min
(19.69 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 30,000 mm/min
(19.69 in/s)
Description

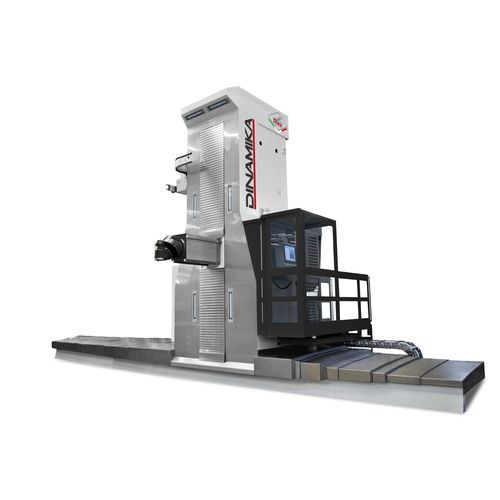

High-speed and high-dynamic moving column machining centre with box-in-box structure
DINAMIKA is a moving column machining centre designed to ensure structural rigidity (thanks to its box-in-box structure), high-speed and high-accuracy.
DINAMIKA stands out for its versatility: it can be fully customized for any kind of application with a wide range of heads, rotary tables, clamping options and automatic head changer. It is the best choice for sectors like aerospace, mould & dies, general engineering and high-accuracy structural machining, where dynamic, accessibility and constant performances are the needs.
DINAMIKA is a moving column machining centre designed to ensure structural rigidity (thanks to its box-in-box structure), high-speed and high-accuracy.
DINAMIKA stands out for its versatility: it can be fully customized for any kind of application with a wide range of heads, rotary tables, clamping options and automatic head changer. It is the best choice for sectors like aerospace, mould & dies, general engineering and high-accuracy structural machining, where dynamic, accessibility and constant performances are the needs.
