5-axis machining center SHARKuniversalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Machined material
- for steel, for aluminum, for aluminum alloys, for titanium alloys, for light alloys, for stainless steel, for composites
- Structure
- with fixed table, traveling-column, with rotary table, double table
- Spindle mount
- HSK-63-A, ISO 5, ISO 40, HSK-A 100
- Associated functions
- milling, turning
- Applications
- for aluminum profiles, for large workpieces, heavy-duty, for stainless steel alloys, for generator rotors, for the automobile industry, for the aerospace industry, for molds, for the aeronautical industry, for aeronautics, for heavy-duty machining, for the mold industry, for the aluminum industry, for titanium, for heavy loads
- Other characteristics
- high-speed, high-performance, compact, high-productivity, high-precision, high-speed, high-rigidity
- X travel
Min.: 3,000 mm
(118.11 in)Max.: 6,000 mm
(236.22 in)- Y travel
Min.: 1,200 mm
(47.24 in)Max.: 1,400 mm
(55.12 in)- Z travel
1,600 mm
(62.99 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 22,000 rpm
(138,230 rad.min-1)- Power
Min.: 0 kW
(0 hp)Max.: 50 kW
(67.98 hp)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 30,000 mm/min
(19.69 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 30,000 mm/min
(19.69 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 30,000 mm/min
(19.69 in/s)
Description

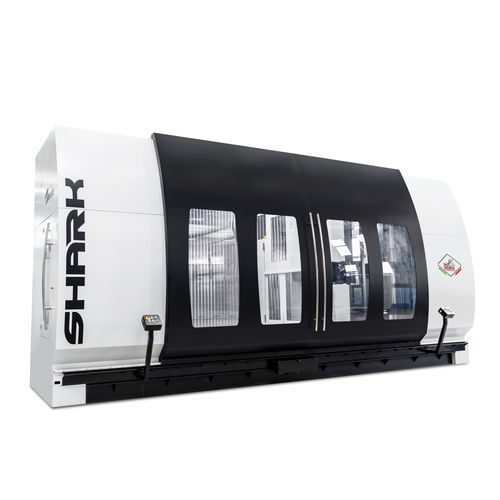

Fixed table moving column machining centre with box-in-box structure
SHARK is an high-accuracy fixed table moving column machining centre designed to ensure structural rigidity and high-accessibility.
The possibility of having one or more rotary mill/turn tables and/or a multi-area configuration, allows SHARK to optimize cycle times and improve productivity, reducing set-up times.
It is a flexible and performing solution, the best choice for a wide range of applications in sectors such as: power generation, general engineering, mould & dies and aerospace where reliability, repeatability and maximum efficiency are required.
SHARK is an high-accuracy fixed table moving column machining centre designed to ensure structural rigidity and high-accessibility.
The possibility of having one or more rotary mill/turn tables and/or a multi-area configuration, allows SHARK to optimize cycle times and improve productivity, reducing set-up times.
It is a flexible and performing solution, the best choice for a wide range of applications in sectors such as: power generation, general engineering, mould & dies and aerospace where reliability, repeatability and maximum efficiency are required.
