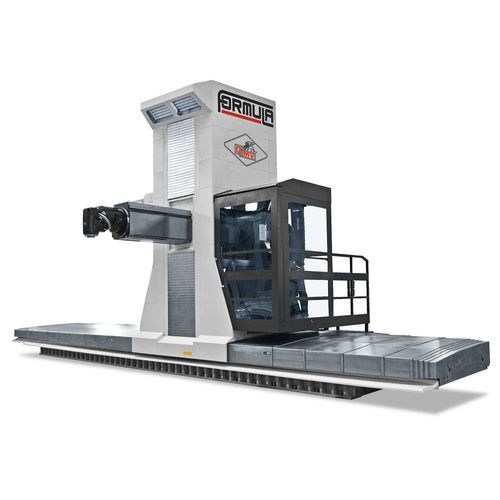

3-axis machining center FORMULA5-axis6-axisuniversal
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 6-axis
- Spindle orientation
- universal
- Machined material
- for steel, for aluminum, for aluminum alloys, for titanium alloys, for light alloys, for stainless steel, for cast iron, for composites
- Structure
- traveling-column, with rotary tilting table, with rotary table, with rotary-translating table
- Spindle mount
- HSK A-63, ISO 5, ISO 40, HSK-100-A
- Associated functions
- milling, turning
- Applications
- for large workpieces, heavy-duty, for the automobile industry, for the aerospace industry, for molds, for aeronautics, for heavy-duty machining, for the mold industry, for the aluminum industry, for gas turbines, for heavy loads, for the steel industry, for generator rotors, for titanium, for the aeronautical industry
- Other characteristics
- high-speed, high-performance, high-productivity, high-precision, high feed rate, high-rigidity, high-power
- X travel
Max.: 20,500 mm
(807.09 in)Min.: 4,500 mm
(177.17 in)- Y travel
1,600 mm
(62.99 in)- Z travel
Max.: 3,600 mm
(141.73 in)Min.: 2,100 mm
(82.68 in)- Rotational speed
Max.: 22,000 rpm
(138,230 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 60 kW
(81.58 hp)Min.: 0 kW
(0 hp)
Description
High-speed and high-dynamic moving column machining centre with thermo-stabilized structure and TTM technology
FORMULA is the most versatile machining centre in our moving column range, designed to merge high-dynamic, structural rigidity and accuracy over time. Equipped with the exclusive TTM technology, ensure smooth movements perfect for high-speed machining.
It is the only machine of its type with an active structure thermo stabilization system, a feature that allows to keep the dimensional stability also during long working cycles and in thermically unstable environments.
Thanks to the moving column configuration, FORMULA offers: maximum accessibility of working area, high flexibility during complex parts machining and many customizing options. It is the perfect solution for sectors like aerospace, general engineering, mould & dies and high-accuracy structural machining.
FORMULA is the most versatile machining centre in our moving column range, designed to merge high-dynamic, structural rigidity and accuracy over time. Equipped with the exclusive TTM technology, ensure smooth movements perfect for high-speed machining.
It is the only machine of its type with an active structure thermo stabilization system, a feature that allows to keep the dimensional stability also during long working cycles and in thermically unstable environments.
Thanks to the moving column configuration, FORMULA offers: maximum accessibility of working area, high flexibility during complex parts machining and many customizing options. It is the perfect solution for sectors like aerospace, general engineering, mould & dies and high-accuracy structural machining.

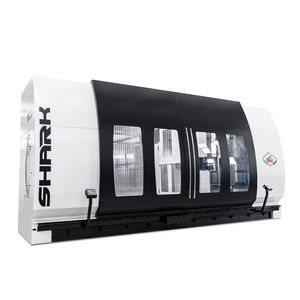

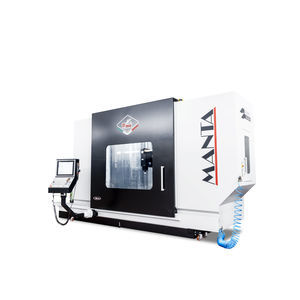

Other Parpas products
Moving column machining centres
