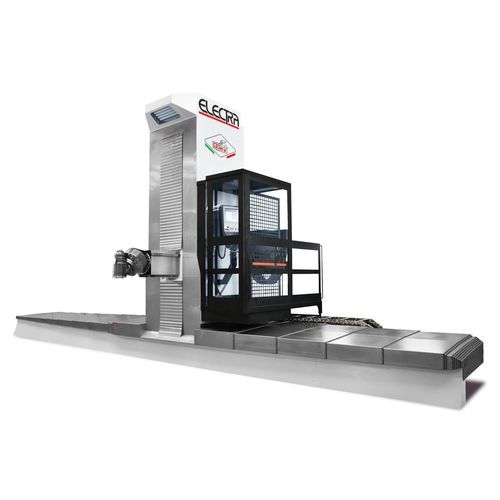

3-axis machining center ELECTRA5-axis6-axisuniversal
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 6-axis
- Spindle orientation
- universal
- Machined material
- for steel, for aluminum, for aluminum alloys, for titanium alloys, for light alloys, for stainless steel, for cast iron, for composites
- Structure
- traveling-column, with rotary table
- Spindle mount
- HSK-63-A, ISO 5, ISO 40, HSK-100-A
- Associated functions
- milling, turning
- Applications
- heavy-duty, for large workpieces, for the automobile industry, for the aerospace industry, for molds, for aeronautics, for heavy-duty machining, for the mold industry, for heavy loads, for the aeronautical industry
- Other characteristics
- high-performance, high-productivity, high-precision, high-rigidity
- X travel
Max.: 16,000 mm
(629.92 in)Min.: 4,000 mm
(157.48 in)- Y travel
Max.: 1,600 mm
(62.99 in)Min.: 1,400 mm
(55.12 in)- Z travel
Max.: 2,600 mm
(102.36 in)Min.: 2,100 mm
(82.68 in)- Rotational speed
Max.: 22,000 rpm
(138,230 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 50 kW
(67.98 hp)- Work feed X-axis
Max.: 30,000 mm/min
(19.69 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 30,000 mm/min
(19.69 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 30,000 mm/min
(19.69 in/s)Min.: 0 mm/min
(0 in/s)
Description
High -accuracy moving column machining centre with box-in-box structure
ELECTRA is a moving column machining centre with box-in-box structure, designed for applications that needs versatility and accessibility.
ELECTRA can be configured in many ways thanks to the wide range of heads, rotary tables, clamping options and automatic head changer. This makes it suitable for any sector: aerospace, general engineering, automotive, mould & dies and high-accuracy structural machining.
The machine is perfect for 3 and 5-axis machining where there is the need of repeatability, reliability, and constant performances.
ELECTRA is a moving column machining centre with box-in-box structure, designed for applications that needs versatility and accessibility.
ELECTRA can be configured in many ways thanks to the wide range of heads, rotary tables, clamping options and automatic head changer. This makes it suitable for any sector: aerospace, general engineering, automotive, mould & dies and high-accuracy structural machining.
The machine is perfect for 3 and 5-axis machining where there is the need of repeatability, reliability, and constant performances.
