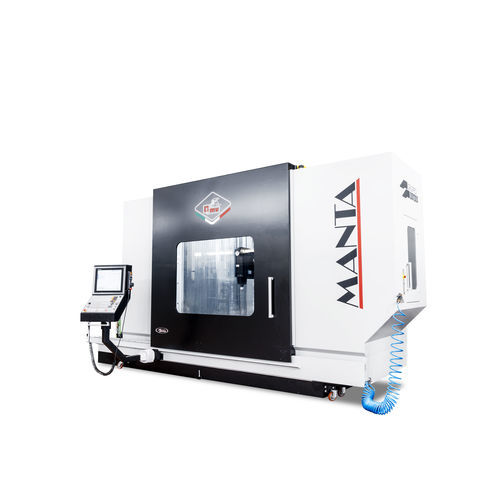

5-axis machining center MANTAverticalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for steel, for aluminum, for aluminum alloys, for titanium alloys, for light alloys, for stainless steel, for cast iron, for composites
- Structure
- with fixed table, traveling-column, with rotary table
- Spindle mount
- HSK-63-A, ISO 5, ISO 40, HSK-100-A
- Associated functions
- milling
- Applications
- heavy-duty, for the automobile industry, for the aerospace industry, for molds, for heavy-duty machining, for the mold industry
- Other characteristics
- high-performance, compact, high-productivity, high-precision, high-speed, high-rigidity
- X travel
Max.: 3,000 mm
(118.11 in)Min.: 2,200 mm
(86.61 in)- Y travel
900 mm
(35.43 in)- Z travel
1,000 mm
(39.37 in)- Rotational speed
Max.: 22,000 rpm
(138,230 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 47 kW
(63.9 hp)Min.: 0 kW
(0 hp)- Work feed X-axis
Max.: 40,000 mm/min
(26.25 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 40,000 mm/min
(26.25 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 40,000 mm/min
(26.25 in/s)Min.: 0 mm/min
(0 in/s)
Description
Compact and versatile fixed table moving column machining centre for accurate machining
MANTA is the fixed table moving column machining centre with a rigid and compact structure designed for maximum ease of use, ease of maintenance and high-accuracy.
The integration with a rotary table improves MANTA’ flexibility, allowing 5-axis machining. The result is a perfect solution for general engineering, light metal parts production, mould & dies and fixtures. The wide range of accessories and clamping systems allows to easily fit the machine in any production cycle.
MANTA is the fixed table moving column machining centre with a rigid and compact structure designed for maximum ease of use, ease of maintenance and high-accuracy.
The integration with a rotary table improves MANTA’ flexibility, allowing 5-axis machining. The result is a perfect solution for general engineering, light metal parts production, mould & dies and fixtures. The wide range of accessories and clamping systems allows to easily fit the machine in any production cycle.
