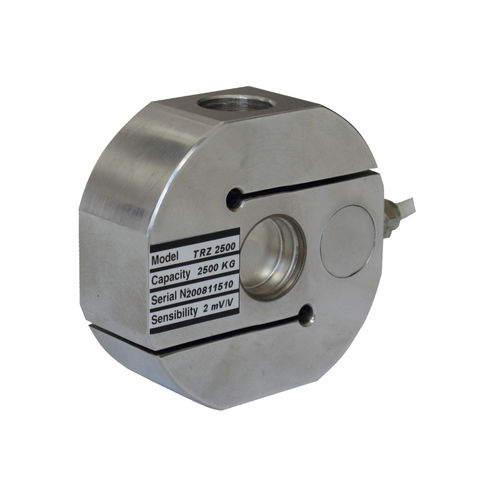

Tension/compression load cell TRZ

S-beamstrain gaugefor hopper

The TRZ traction load cell (also known as TRZ tension cell or TRZ S-type load cell), is made of stainless steel and it has been designed for the industrial weighing of small tanks and hoppers. The tension TRZ cell has excellent linearity and precision characteristics and it withstands overloads of more than 300%. The TRZ S-type load cell is weather-proof for use in severe environmental conditions, it is available in a special high temperature version and can be customized. Technical Specifications Rated load RL: 100, 250, 500, 750, 1000, 2500, 5000, 7500, 10000 Kg Combined error: ±0.03 % RO Repeatability: ±0.01 % RO Creep (20 minutes): ±0.02 % RO Safe overload: 150 % RL Ultimate overload: > 300 % RL Material: Stainless steel AISI 17-4PH Degree of protection: IP68 Deflection: 0.4 mm Compensated Temperature: -10 ÷ +50°C Temperature range: -20 ÷ +70°C Temperature effect on zero balance: ±0.005 % RO/°C Temperature effect on output: ±0.005 % on output/°C Rated output RO: 2.0 mV/V ±0.1 % Zero balance: ±2 % SN Insulation resistance: > 5000 MOhm Input resistance: 350 ±10 Ohm Output resistance: 350 ±10 Ohm Recommended input: 5 ÷ 15 Vdc/ac
