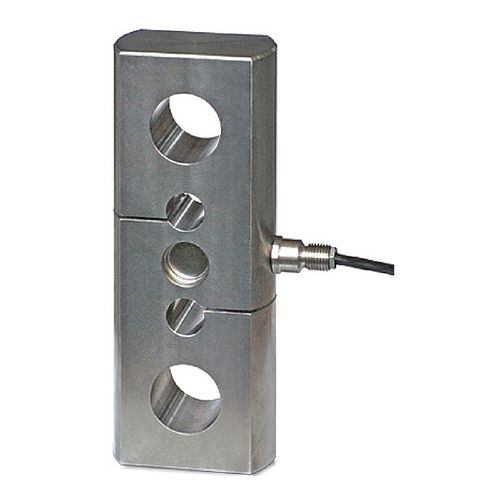

Compression load cell PSTR

S-beamstainless steelIP68

The PSTR tension load cell is made of stainless steel and is ideal for tensile loads and suspended loads, for measuring tensile forces, for dynamometric measurements and as a load limiting device for lifting systems combined with our instruments. The PSTR cell has a 10-meter shielded 4-conductor cable. Technical Specifications Rated load RL: 5, 10, 20 t Combined error: 300 % RL Material: Stainless steel Degree of protection: IP68 Deflection: 0.3 mm Compensated Temperature: -10°C ÷ +50°C Temperature range: -20°C ÷ +70°C Temperature effect on zero balance: ±0.005 % RO/°C Temperature effect on output: ±0.003 % RO/°C Rated output RO: 2 mV/V ±0.1 % Zero balance: ±1 % Insulation resistance: > 5000 MOhm Input resistance: 350 Ohm ±5 Output resistance: 350 ±5 Ohm Recommended input: 5 ÷ 15 Vdc/ac Maximum supply voltage: 15 Volt Cable Lenght: 10 m Temperature effect on full scale: 0.003% /°C
