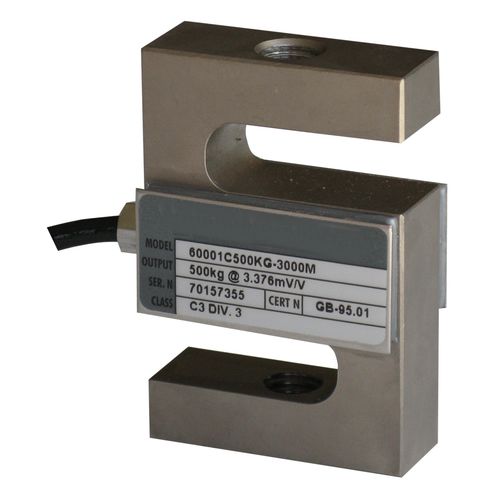

Tension/compression load cell 60001
S-beamsteelnickel-plated

tension/compression load cell
tension/compression load cell
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Form
S-beam
Other characteristics
steel, nickel-plated, for harsh environments, IP67
Rated load

Min.: 50 kg (110.23 lb)

Max.: 10,000 kg (22,046.23 lb)

Description

The tension load cell 60001 has been designed for the industrial weighing of small tanks and hoppers. The S-type load cell 60001 has excellent linearity and accuracy features and excellent overload resistance of over 300%. Made of nickel-plated steel, the traction load cell 60001 has a watertight protection for use in severe environmental conditions. Technical Specifications Rated load RL: 50, 100, 250, 500, 1000, 2500, 5000, 10000 Kg Combined error: < ±0.02 % RL Repeatability: < ±0.01 % RL Creep (30 minutes): ±0.017 % RL Safe overload: 150 % RL Ultimate overload: 300 % RL Material: Nickel steel Degree of protection: IP67 Accuracy class: 3000 OIML (250 ÷ 2500 kg) Deflection: 0.3 ÷ 0.6 mm Compensated Temperature: -10 ÷ +40°C Temperature range: -18 ÷ +65°C Temperature effect on zero balance: < ±0.0010 % RO/°F Temperature effect on output: 1000 MOhm Input resistance: 343 ÷ 450 Ohm Output resistance: 349 ÷ 355 Ohm Recommended input: 5 ÷ 15 Vdc/ac
