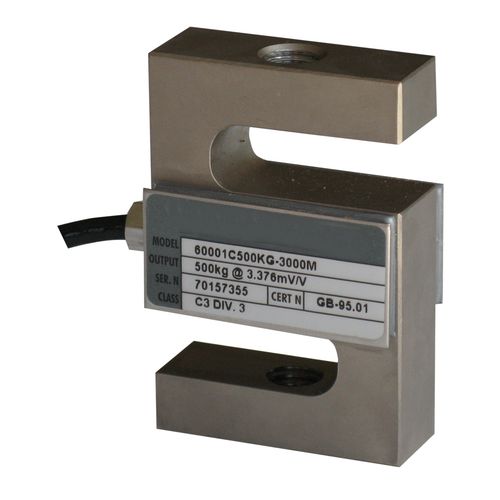

Tension/compression load cell 60050

S-beamweighingfor hopper

The tension and compression load cell 60050 (also known as traction or S-type load cell) has been designed for the industrial fiscal weighing of small tanks and hoppers. The traction load cell 60050 has excellent characteristics of linearity and precision and an excellent resistance to overloads of more than 300%. The 60050 S-type cell is made of stainless steel and it is waterproofed to be used in severe environmental conditions. Technical Specifications Rated load RL: 50, 100, 250, 500, 1000, 2500, 5000, 10000 Kg Combined error: < ±0.02 % RO Repeatability: < ±0.01 % RO Creep (30 minutes): ±0.017 % RL Safe overload: 150 % RL Ultimate overload: 300 % RL Material: Stainless steel Degree of protection: IP67 Accuracy class: 3000 OIML (250 ÷ 2500 kg) Deflection: 0.3 ÷ 0.6 mm Compensated Temperature: -10 ÷ +40°C Temperature range: -18 ÷ +65°C Temperature effect on zero balance: < ±0.0010 % RL/°F Temperature effect on output: < ±0.0007 % RL/°F Rated output RO: 3 mV/V Zero balance: 1000 MOhm Input resistance: 343 ÷ 450 Ohm Output resistance: 349 ÷ 355 Ohm Recommended input: 5 ÷ 15 Vdc/ac
