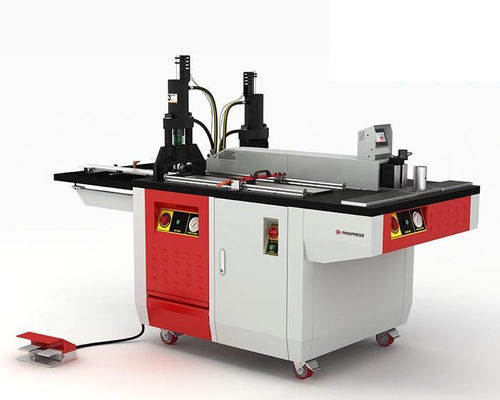

Cutting busbar fabrication machine HBC-E

punchingbendingmobile

Overview
The PAYAPRESS HBC-E series is an economic busbar processing machine family for accurate bending, cutting and punching of copper and aluminum busbars. Designed for switchgear panel fabrication and industrial workshops, the E series balances practical functionality and investment cost while processing busbars up to 120 × 12 mm. Available types include EA models (three independent hydraulic power packs for simultaneous station operation) and EB models (single power pack for sequential one-by-one processing).

How it works
EA models: three independent hydraulic power packs enable concurrent operation of bending, cutting and punching stations to increase throughput. EB models: a single hydraulic power pack drives bending, cutting and punching stations sequentially, providing a lower-investment configuration suited to standard production flows. Both types include electronic bending control and a laser pointer for bending alignment; optional bending molds are available.

Benefits

• Lower investment cost compared with fully automated systems.
• Reduced material waste through accurate cutting, punching and bending — critical for high-value copper material.
• Higher workshop productivity by combining three essential busbar operations in one machine.
• Improved return on investment by increasing output and reducing rework.
• Consistent job quality for cleaner electrical connections and uniform panel assembly.
• Suitable for small and medium switchgear manufacturers expanding capacity incrementally.
• Commercially viable balance of machine price, performance and production capability.

Product comparison: HBC-EB120 vs HBC-EA120-EH
Specification | HBC-EB120 | HBC-EA120-EH
Functions | Cutting + Punching + Bending | Cutting + Punching + Bending
Max capacity | 120 × 12 mm | 120 × 12 mm
Max die / hole diameter | 20 mm | 20 mm
Max radius bending | 12 | 12
Material | Aluminum & copper | Aluminum & copper
Positioning stopper | Handy | Handy
Rated voltage | 380 V AC | 380 V AC
Total power | 1.7 kW | 5 kW
Frequency | 50 Hz | 50 Hz
Operating pressure | 200 bar | 200 bar
Hydraulic oil | 30 L | 70 L
Machine weight | 650 kg | 700 kg
Operators required | 1–2 | 3
Mounting type | Wheel | Wheel
Dimensions (L × W × H) | 237 × 110 × 172 cm | 237 × 110 × 172 cm

Characteristics / Technical specifications

• Model series: HBC-E series (examples: HBC-EA120EH, HBC-EB120EH)
• Max busbar capacity: 120 × 12 mm (copper/aluminum)
• Core functions: bending, cutting, punching (combined in one machine)
• EA vs EB: EA = three independent hydraulic power packs (simultaneous operation); EB = single power pack (sequential operation)
• Electronic bending controller included
• Laser pointer for bending alignment (standard)
• Optional bending molds available
• Rated voltage: 380 V three-phase
• Total power: HBC-EB120 = 1.7 kW; HBC-EA120-EH = 5 kW
• Operating pressure: 200 bar
• Hydraulic oil capacity: 30 L (EB) / 70 L (EA)
• Max die / hole diameter: 20 mm
• Max bending radius: 12
• Materials processed: copper and aluminum
• Positioning stopper: handy (manual positioning stopper)
• Machine weight: approx. 650 kg (EB) / 700 kg (EA)
• Operators required: EB typically 1–2; EA up to 3 for simultaneous stations
• Mounting: wheels for mobility
• Dimensions (L×W×H): 237 × 110 × 172 cm
