Partial-extension linear slide SDP series

drawerheavy-dutycorrosion-resistant

Overview

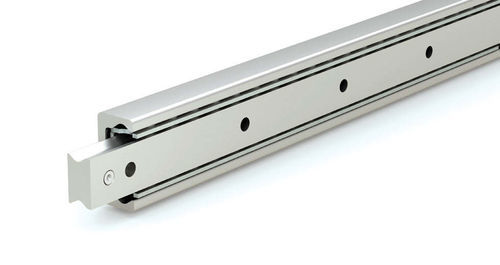

Partial-extension heavy-duty drawer slides (SDP Series) are telescoping steel rail assemblies with an internal slider, precision ball cage, and hardened external rails. The partial-extension design allows the load-bearing platform to extend only part of the rail length while maintaining support inside the cabinet or frame for compactness and stability. PBC Linear’s SDP Series serves as a standalone partial-extension slide and as a modular element for rear-mount, face-mount, and side-by-side configurations.

Key advantages

• Partial-extension motion for guided travel where full extension is unnecessary
• Compact footprint for simplified integration into machine frames and equipment
• Hardened steel construction with corrosion-resistant finish
• Precision ball guidance for smooth, repeatable performance under load

Applications

• Machine trays, tool compartments and equipment drawers
• Service panels and machine access doors
• Automation systems, industrial storage and racking
• Lightweight mobile equipment and rack-mounted enclosures requiring limited travel

Product examples (representative)

• Steel Drawer Slide SDP43S-1970 — Partial Extension — Size: 43 mm — Stroke: 1013 mm
• Steel Drawer Slide SDP43S-1890 — Partial Extension — Size: 43 mm — Stroke: 963 mm
• Steel Drawer Slide SDP43S-1810 — Partial Extension — Size: 43 mm — Stroke: 928 mm
• Steel Drawer Slide SDP43S-1730 — Partial Extension — Size: 43 mm — Stroke: 878 mm

Technical specifications

• Design: Partial-extension telescoping steel drawer slide with internal slider and precision ball cage
• Maximum stroke: Up to 1013 mm
• Rail lengths available: 130 mm to 1970 mm
• Typical profile: 43 mm rail width (SDP Series example)
• Load capacity: Supports up to 24,230 N
• Construction: Hardened steel rails
• Finish: Corrosion-resistant finish
• Guidance: Precision ball guidance for smooth, repeatable motion
• Use cases: Machinery trays, service panels, equipment compartments, automation systems, industrial storage, machine access doors, mobile equipment
