Full-extension linear slide SDF series

drawerheavy-dutysteel

Overview

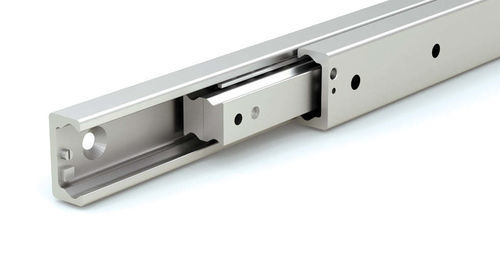

Face-mount drawer slides are telescoping linear rail assemblies supported from a front mounting surface and built around a ball-cage slide mechanism for smooth extension and retraction. In a face-mount configuration the rail sections are arranged face-to-face, creating a more enclosed profile around the ball cage and rolling elements to help shield them from dust, debris, wood chips and other light contamination. The SDF heavy-duty drawer slide series uses hardened steel SDP rail sections in this face-to-face arrangement for guided full-extension travel in industrial applications.

Applications

• Factory floors
• Packaging machinery
• Woodworking equipment
• Industrial enclosures
• Service panels and equipment access

Key features

• Dust-resistant design: enclosed face-mount profile shields ball cage and rolling elements from debris
• Telescoping face-mounted configuration for guided full-extension travel
• Hardened steel SDP rail sections for heavy-duty service
• Available in single- or double-direction stroke configurations
• Maximum stroke: up to 2,026 mm
• Rail lengths available: 130 mm to 1,970 mm
• Load capacity: up to 1,909 N
• Nominal sizes available (example): 43 mm nominal size for SDF43 variants

Technical specifications

• Series: SDF (SDF Series)
• Type: Face-mount, full-extension telescoping drawer slide
• Mechanism: Ball-cage slide (rolling elements)
• Rail material: Hardened steel (SDP rail sections)
• Configuration: Face-to-face rail arrangement (enclosed profile)
• Stroke options: Single-direction and double-direction stroke configurations
• Maximum stroke: up to 2,026 mm
• Rail lengths available: 130 mm to 1,970 mm
• Load capacity: up to 1,909 N
• Particle resistance: Dust-resistant; shields ball cage from dust, debris and wood chips
• Example nominal sizes: 43 mm (SDF43 variants)
• Typical applications: Factory floors, packaging machinery, woodworking equipment, industrial enclosures, service panels
