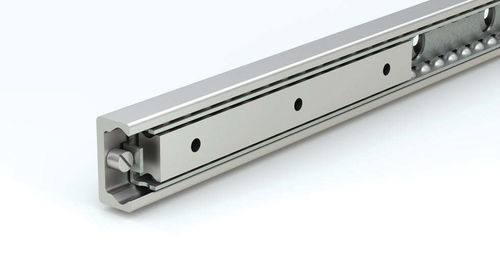

Full-extension linear slide SDC series

ball bearingdrawerheavy-duty

Overview
Ball-bearing linear slides with C-shaped guide rails designed for contained, guided linear motion. The SDC Series uses a separate precision ball cage and a hardened steel rail. The internal carriage carries the load inside the fixed C-shaped external rail while the ball cage retains steel balls between carriage and rail surfaces to provide rolling contact with low friction and even load distribution.

How it works
The internal carriage is pushed or pulled within the fixed C-shaped rail. The ball cage floats between the carriage and rail and typically travels about half the distance of the carriage travel. Integrated mechanical end stops limit travel within the rail length, protecting internal components and keeping motion inside the rail envelope.

Advantages & Applications

• Contained motion inside a C-shaped rail envelope for protected operation and resistance to debris
• Low-friction rolling contact and distributed load path for long life under heavy loads
• Support for multiple internal carriages on a single rail for modular, high-capacity systems
• Typical applications: heavy industrial platforms, large access panels, robotics staging systems, machine access systems and other rugged installations requiring contained linear motion

Features

• C-shaped enclosed geometry: internal slider remains within the rail envelope
• Separate ball cage retains steel balls between carriage and rail surfaces
• Multiple-slider capability for modular and multi-carriage configurations
• Single- and double-direction stroke options
• Integrated mechanical end stops to limit and protect travel
• Enclosed design helps protect internal components from debris while maintaining guided motion

Technical specifications

• Series: SDC Series
• Maximum stroke: up to 1,310 mm
• Rail lengths available: from 130 mm to 1,970 mm
• Load capacity: up to 65,272 N
• Typical internal carriage travel relative to carriage stroke: ball cage typically travels about half the carriage travel
• Available with single- and double-direction stroke configurations
• Example product form factors (illustrative): SDC43 variants (example internal dimensions from listing): e.g. SDC43N-1330-610 — 43 mm rail width, 1330 mm rail length, 610 mm internal carriage
