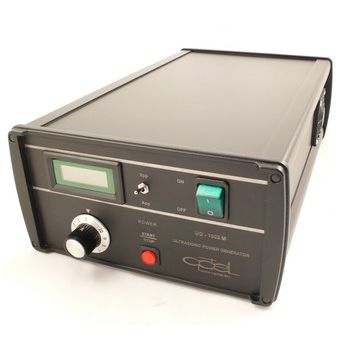

Ultrasonic pulse generator UG-1002M

ultrasonic pulse generator
ultrasonic pulse generator
Add to favorites
Compare this product

Characteristics

Type
ultrasonic pulse

Description

UG-1002M Generator is designed for use with high-power ultrasonic transducers commonly used in washers and equipment for welding and cutting of materials, chemical reactors, etc. The specific properties of these transducers cause that each generator is matched to a particular transmitter ie its frequency and input impedance characteristics. The generator can be controlled manually - from the front panel or remotely - via DB15 connector located on the rear panel. Standard equipment: - Generator Module UG-1002M - The power cable - Cable to connect the ultrasound transducer Technical data: Operating frequency: 34 600 Hz Automatically adjust range: 34 000 - 35 000Hz Minimum output voltage: < 200Vpp Maximum output voltage: 1500Vpp Power output: 1000W* Therange of permissible load impedance: 100 - 500Ω Supply voltage: 230VAC Fuse, time delay: 10A dimensions [mm]: 233x121x370 Weight: 8kg
