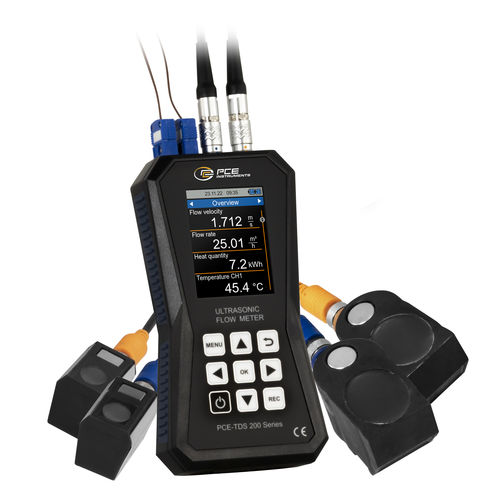

Ultrasonic flow meter PCE-TDS 200+ Seriesfor oilfor waterfor aggressive media
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Fluid
- for oil, for water, for aggressive media, for adhesives, for chemicals, for fuel, for hydrocarbons, for abrasive fluids, for gas, for wastewater, for acids, for high-viscosity liquids, for conductive liquids, for ink, for beer, for heavy liquids, for corrosive fluids, for paint, for hot water, rainwater, for refrigerant fluids, for biodiesel, grease, for sludge, for LNG, coolant
- Pipe diameter
- DN25 - 1", DN50 - 2", DN150 - 6", DN275 - 11", DN15 - 1/2", DN100 - 4", DN80 - 3", DN175 - 7", DN250 - 10", DN40 - 1"1/2, DN20 - 3/4", DN300 - 12", DN32 - 1"1/4, DN90 - 3"1/2, DN65 - 2"1/2, DN125 - 5", DN1200 - 48", DN225 - 9", DN200 - 8", DN60 - 2"1/4
- Installation
- clamp-on, vertical, portable, horizontal
- Material
- stainless steel, aluminum, steel, brass, PVC, polypropylene, titanium
- Communication
- digital output, USB
- Supply voltage
- 5 VDC
- Protection level
- waterproof
- Applications
- for low flow rates, industrial, for water treatment, for the pharmaceutical industry, for the petrochemical industry, for the food industry, for high flow rates, for dosing, laboratory, for harsh environments, for hydraulic applications
- Other characteristics
- compact, digital, precision, with display, programmable, with data logger, with temperature sensor, stand-alone
- Process temperature
Max.: 160 °C
(320 °F)Min.: -30 °C
(-22 °F)
Description
The ultrasonic flow meter has a measuring range of ±32 m/s. To perform flow measurement with the ultrasonic flow meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications.
In order to determine the amount of heat with the ultrasonic flow meter, two additional thermocouples are required. These are available with the PCE-TDS 200+. The two thermocouples of the ultrasonic flow meter are connected to the flow and return of a pipe system. Based on the temperature difference and the measured flow rate, the ultrasonic flow meter can determine the amount of heat. If required, the ultrasonic flow meter can calculate and display the costs per heat quantity unit simultaneously during the measurement. Thus, the ultrasonic flow meter is used, for example, in the inspection of heating systems.
