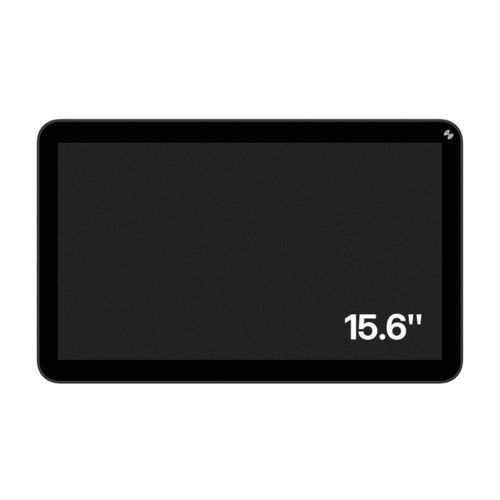

Android 15 tablet Tab-IND® 15

15.6"octa-coreQualcomm® QCM6490

Overview
A future-proof 15.6 inch Android™ POS tablet and kiosk terminal designed for self-service, POS and kiosk applications. Ruggedized design with integrated contactless payment support (EMVCo Level 1), front-facing illuminated NFC antenna, flexible VESA mounting and enterprise-grade durability.

Key features

• 15.6 inch (39.62 cm) TFT LCD, 1080 x 1920 px, aspect ratio 9:16
• Touch screen: Multi-touch
• Processor: Qualcomm® QCS6490 Octa-Core 2.1 GHz
• Memory: 8 GByte RAM; 128 GByte UFS internal storage
• Operating System: Android™ 15 with GMS (latest firmware release Android™ 15)
• Front-facing, illuminated NFC antenna optimized for payments (EMVCo L1 approved); supports Felica and MiFare and SoftPOS applications
• Integrated speaker and microphone
• Cover glass with anti-glare treatment
• VESA mounting pattern: 70 x 70 mm and 100 x 100 mm
• I/O ports: multiple USB-C 2.0 ports, USB-C 3.2 (service), USB-A host, RJ-45 LAN with PoE, DC input (24 V / 3 A)
• Approved for EU, UK, USA

Applications / Use cases
Self-ordering, self-check-in, self-checkout, point-of-service in retail, hospitality and quick-service environments; transit & payment use (cards and digital wallets); industrial applications as MES terminals or machine control with VESA mounting for direct installation on machinery.

Certifications & Payment

• EMVCo Level 1 certified contactless payment (tap-to-pay directly on screen)
• SoftPOS-capable with partner SoftPOS applications available

Technical Data (summary table)
Hardware
Processor: Qualcomm® QCS6490 Octa-Core 2.1 GHz
RAM: 8 GByte
Internal data memory: 128 GByte UFS
Front camera: 5 MP (optional accessory)
Speaker: integrated
Microphone: integrated

Display / Indicators / Operating means
Touch screen technology: Multi-touch
Panel type: TFT, LCD
Screen size: 15.6 inch (39.62 cm)
Aspect ratio: 9:16
Screen resolution: 1080 x 1920 px
Brightness: 350 cd/m²
Special features: Cover glass with anti-glare treatment

Interface
I/O ports: 1x USB-C 2.0 (rear); 3 x USB-C 2.0 (each side for accessories); 1 x USB-C 3.2 (right side, accessories/service); 1x USB-A host (rear); RJ-45 LAN with PoE; DC input (barrel) 24 V @ 3 A

Communication
WLAN: IEEE 802.11ax
Bluetooth: Bluetooth® 5.2
NFC: Front-facing NFC antenna (top right, illuminated symbol); optimized for payment processing; supports Felica and MiFare; EMVCo L1 approved; SoftPOS applications available

Software
Operating system: Android™ 15 with GMS

Ambient conditions
Operating temperature: -10 ... 50 °C (14 ... 122 °F)
Storage temperature: -20 ... 60 °C (-4 ... 140 °F)
Relative humidity: 10 % ... 90 %

Mechanical specifications
Installation: VESA mounting pattern 70 x 70 mm and 100 x 100 mm
Mass: approx. 3 kg (incl. power supply)
Dimensions: Height 348.5 mm; Width 238.8 mm; Depth 31.3 mm

International approvals
Approved for EU, UK, USA

Scope of delivery

• Tab-IND® KIOSK Terminal
• Power supply 24 V / 3 A / 72 W

Specifications / Technical details

• Model: Tab-IND® 15
• OS: Android™ 15 with GMS
• CPU: Qualcomm® QCS6490 Octa-Core 2.1 GHz
• RAM: 8 GB
• Storage: 128 GB UFS
• Display: 15.6" TFT LCD, 1080 x 1920 px, 350 cd/m²
• Touch: Multi-touch, anti-glare cover glass
• NFC: Front-facing, illuminated; EMVCo L1 approved; SoftPOS-ready; supports Felica and MiFare
• Ports: multiple USB-C (incl. USB-C 3.2), USB-A host, RJ-45 PoE, DC 24 V/3 A
• Mounting: VESA 70 x 70 mm and 100 x 100 mm
• Operating temp: -10 to 50 °C
• Approvals: EU / UK / USA
• Approx. mass: 3 kg (incl. PSU)
