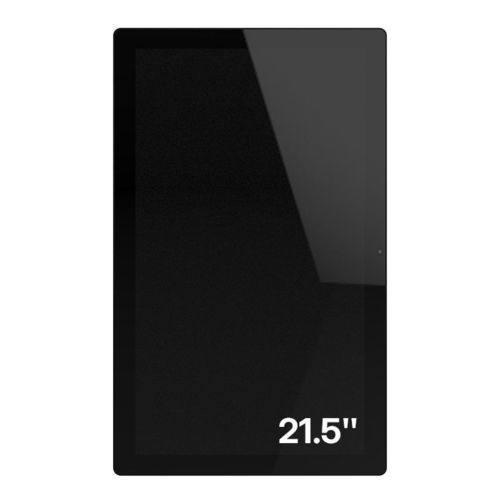

Multitouch screen terminal Tab-IND® 22

wall-mountVESA mountingpanel-mount

Overview
The Tab-IND® 22 is a 21.5-inch Android™ all-in-one self-service KIOSK terminal engineered for unattended ordering, check-in and checkout. It integrates a front-facing high-performance NFC antenna for contactless payments, supports multiple VESA mounting options and offers enterprise-level components for continuous operation.

Key features

• 21.5" multi-touch TFT LCD kiosk for self-ordering, self-checkout and self-check-in.
• Front-facing tap-and-pay reader with an ultra-high performance NFC antenna located centrally behind the display; supports transit cards (Felica, MiFare).
• CPoC- and MPoC-capable contactless reader for contactless cards and mobile wallets; SoftPOS partner applications supported.
• Reinforced cover glass with anti-glare treatment and rugged housing for demanding environments.
• Optimized for high-throughput environments: retail, concessions, hospitality, ticketing, drive-thru and industrial interfaces.
• VESA mounting patterns 70 × 70 mm and 100 × 100 mm for wall, stand or panel installation.
• Multiple integration options to embed the Tab-IND® 22 into self-service and self-checkout systems.

Use cases
The Tab-IND® 22 is suitable for retail self-checkout and ordering, hospitality kiosks, ticketing machines, transit points, MES terminals and machine control interfaces where a compact, payment-capable terminal is required.

Scope of delivery

• Tab-IND® KIOSK Terminal
• Power supply 24 V / 3 A / 72 W

Art. No.
70206537

Operating System
Android™ 15 with GMS

Technical specifications

• Processor: Qualcomm® QCS6490 Octa-Core 2.1 GHz
• RAM: 8 GByte
• Internal storage: 128 GByte UFS
• Front camera: 13 MP autofocus
• Audio: integrated speaker and microphone
• Display / Touch: 21.5" (54.61 cm) TFT LCD, multi-touch
• Aspect ratio: 9:16
• Resolution: 1080 × 1920 px
• Brightness: 350 cd/m²
• Special features: reinforced cover glass with anti-glare coating; rugged housing
• I/O: 2× USB-C (data only, host mode), 2× USB-A (host mode), RJ-45 LAN, DC input (barrel) 24 V / 3 A
• WLAN: IEEE 802.11ax
• Bluetooth: Bluetooth® 5.2
• NFC: Front-facing NFC antenna behind display (central), optimized for payments; supports Felica and MiFare; SoftPOS partner apps available
• OS (software): Android™ 15 with GMS
• Operating temperature: -10 … 50 °C (14 … 122 °F)
• Storage temperature: -20 … 60 °C (-4 … 140 °F)
• Relative humidity: 10 % … 90 %
• Installation / Mechanical: VESA 70 × 70 mm and 100 × 100 mm
• Weight: approx. 5.2 kg (including power supply)
• Dimensions (H × W × D): 528.3 × 323.5 × 42.2 mm
• International approvals: EU, UK, USA
