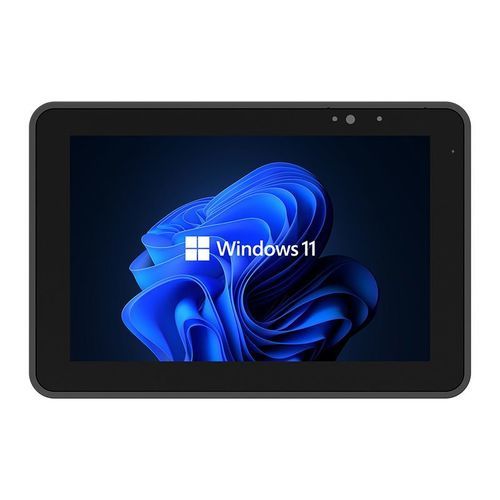

Windows 11 tablet Tab-IND® 10 WIN

10.1"quad-coreIntel® Processor N100

Overview
The Tab-IND® 10 WIN is an industrial-grade rugged 10.1" tablet engineered for industry, logistics, manufacturing, automotive and field-service applications. It delivers enterprise durability, a sunlight-readable WUXGA display and long-term availability while running Windows® 11 LTSC 64 Bit. The design supports mobility and customization via accessories and SmartBack modules.

Key product highlights

• Industrial-grade rugged tablet with IP65 protection
• 10.1" WUXGA (1920 x 1200), 660 cd/m² — operable with pen or gloves
• Front-facing NFC with secure element for payments, authentication and access control
• Optional Scanner Frame for professional barcode scanning (logistics, warehousing, asset tracking)
• SmartBack ecosystem for battery extensions, card readers, payment modules and VESA I/O adapters

Application Range
Suitable for intralogistics, warehouse operations, manufacturing floors, automotive production and maintenance, aviation ground operations and outdoor field service. Compatible accessories enable barcode-based inventory workflows, transport tracking and integrated payment or identification solutions.

Optional: Scanner Frame
High-performance barcode scanner module that expands Tab-IND 08/10 use cases to logistics and asset tracking. Features ergonomic compact design, professional scan performance, enhanced ruggedization (tested drops up to 1.2–1.5 m depending on configuration) and SmartBack compatibility.

Tab-IND SmartBacks
SmartBack modules integrate additional interfaces (USB, GPIO, power) and functions such as battery extension, magnetic card readers, payment modules and VESA adapters with I/O to tailor the tablet to specific workflows.

Technical Data (summary)
Hardware: Processor: Intel® N100, Quad Core 2.9 GHz
RAM: 8 GB (optional 16 GB)
Cameras: Front 13 MP; Main 13 MP
Storage: 128 GB UFS (optional 256 GB); microSDXC slot (user-accessible)
Sensors: E-compass, accelerometer, gyro, ambient light, proximity
Display / Input: Multi-touch; 10.1" (16:10) WUXGA 1920×1200; 660 cd/m²; passive stylus support (4 mm tip); glove operation; improved wet-environment use
Power: Replaceable Li‑ion 37.19 Wh (4830 mAh); USB-C PD charging (use PS2/LPS compliant ≥27 W charger)
I/O: USB-C, USB 3.1 Gen1, PD (12V/3A), DP 1.2; Dock: USB 3.1 Gen1, HDMI 1.4b; SmartBack connector
Communication: Wi‑Fi 6E (IEEE 802.11ax + r/k/v), Bluetooth® 5.3, GPS/GNSS/Galileo, front NFC Secure Element
OS & Security: Windows® 11 LTSC 64 Bit; optional fingerprint sensor
Environmental / Mechanical: Operating -10 … 50 °C; Storage -20 … 60 °C; RH 10–90 %; IP65; drop resistance: 1 m on concrete / 1.22 m on plywood (up to 1.5–1.8 m with optional frames)
Mass & Dimensions: approx. 826 g; 180.7 × 269 × 12.7 mm

Scope of delivery

• Tab-IND (tablet device)

Characteristics / Technical specifications

• Model family: Tab-IND® series
• Model: Tab-IND® 10 WIN
• CPU: Intel® N100, Quad-Core 2.9 GHz
• RAM: 8 GB (optional 16 GB)
• Storage: 128 GB UFS (optional 256 GB) + microSDXC
• Display: 10.1" WUXGA (1920×1200), 660 cd/m², multi-touch
• Cameras: Front 13 MP / Main 13 MP
• Wireless: Wi‑Fi 6E, Bluetooth 5.3, GNSS
• NFC: Front-facing Secure Element
• Battery: Replaceable Li‑ion 37.19 Wh
• Protection: IP65; multiple drop ratings by configuration
• Interfaces: USB-C, USB 3.1 Gen1, DP 1.2, HDMI (dock), SmartBack connector
• OS: Windows® 11 LTSC 64 Bit
