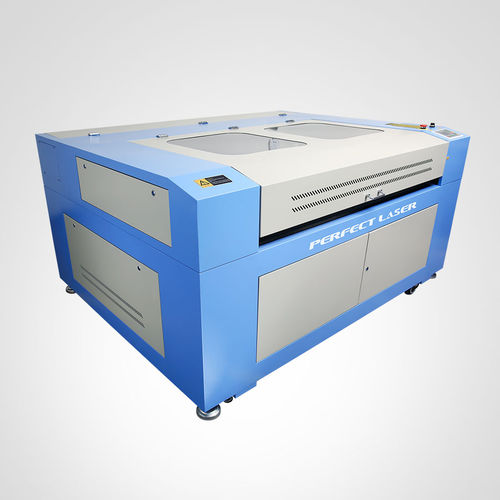

Engraving cutting machine PEDK-140100II
CO2 laserfor rubberfor PVC

Engraving cutting machine - PEDK-140100II - Perfect Laser Co., Ltd. (China) - CO2 laser / for rubber / for PVC
Engraving cutting machine - PEDK-140100II - Perfect Laser Co., Ltd. (China) - CO2 laser / for rubber / for PVC
Engraving cutting machine - PEDK-140100II - Perfect Laser Co., Ltd. (China) - CO2 laser / for rubber / for PVC - image - 2
Engraving cutting machine - PEDK-140100II - Perfect Laser Co., Ltd. (China) - CO2 laser / for rubber / for PVC - image - 3
Engraving cutting machine - PEDK-140100II - Perfect Laser Co., Ltd. (China) - CO2 laser / for rubber / for PVC - image - 4
Engraving cutting machine - PEDK-140100II - Perfect Laser Co., Ltd. (China) - CO2 laser / for rubber / for PVC - image - 5
Engraving cutting machine - PEDK-140100II - Perfect Laser Co., Ltd. (China) - CO2 laser / for rubber / for PVC - image - 6
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser
Material
for rubber, for PVC, for acrylics, for wood, for fabrics
Product handled
tube, panel, sheet
Associated function
engraving
Applications
for industrial applications
Configuration
compact, double-head
Other characteristics
high-precision
X travel

1,400 mm
(55.12 in)

Y travel

1,000 mm
(39.37 in)

Cutting speed

Min.: 0 mm/min
(0 in/s)

Max.: 10,000 mm/min
(6.562 in/s)

Laser power

Min.: 60 W

Max.: 180 W

Repeatability

0.0125 mm
(0.0005 in)

Description

Perfect Laser is a world famous manufacturer of industrial laser equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.The laser engraving and cutting machine PEDK-140100II is the most popular model and has been well received by customers. The machine's working format is 1400 × 1000mm, compact cellular platform for easy storage of materials 1. Double laser cutting head: Two cutting heads make cutting or engraving faster and improve work efficiency. 2. Laser tube: two independent laser tubes. 3. Professional work platform: 1) Suitable for heavy and thick materials such as wood, MDF, linen, etc.; 2) a honeycomb table for soft tissue or the like; 3) Designed according to your different engraving or cutting needs. 4. The overall body is sturdy. 5. Front and rear communication design: Open the machine to put large pieces of material. 6. Advanced LCD control + USB offline + 128m large memory: Advanced LCD control, can import any file through U disk, setting parameters in LCD screen is simple and convenient. 7. With 128M of large memory, you can store a variety of software, such as AutoCAD, CorelDraw, Photoshop and so on. 8. Observation window: made of thickened visible acrylic material with high security protection. When the operator opens the cover, the work will stop immediately, ensuring the safety of the operator and not being damaged by laser processing. 9. Red light indicator: Since the laser is invisible, the red pointer can achieve the precise position of the laser beam. 10. Power switch: With “overcurrent protection” function, it is safer to use.
