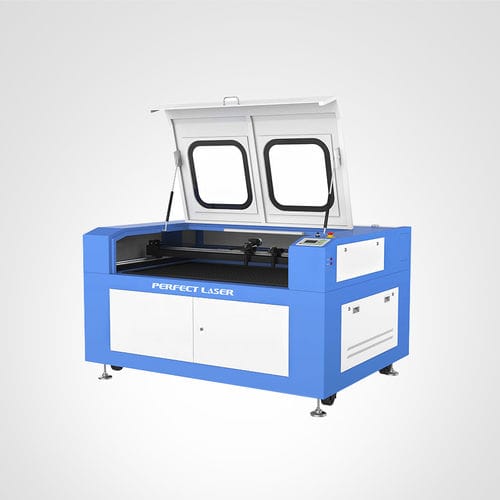

CO2 laser cutting machine PEDK-13090S
for rubberfor PVCfor wood

CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser
Material
for rubber, for PVC, for wood
Product handled
for thin sheet metal
Control type
with control software
Associated function
engraving, forming, rolling
Applications
for industrial applications
Workpiece loading
with automated loading
Configuration
large-format
Other characteristics
automatic, high-performance, high-efficiency, with water cooling, high-power, high-productivity, large capacity
X travel

Min.: 0 mm
(0 in)

Max.: 1,300 mm
(51 in)

1,300 mm
(51 in)

Y travel

Min.: 0 mm
(0 in)

Max.: 900 mm
(35 in)

900 mm
(35 in)

Cutting speed

Min.: 0 mm/min
(0 in/s)

Max.: 10,000 mm/min
(6.562 in/s)

Laser power

Min.: 60 W

Max.: 150 W

100 W

Description

►Product Introduction The co2 laser engraving cutting machine runs fast with simple operation and low cost; The engraving effect is good, no burr on the cutting edge, no secondary grinding, less cutting waste, carving depth of the best laser engraving machines can be adjusted independently and with high precision. ►Product Features 1. High-speed inner slide: the cutting speed of this laser engraver cutter machine is very fast, greatly improving work efficiency. 2. Convenient operation interface: Advanced LCD screen, the laser engraver cutter machine supports PC and USB2.0 ports, DSP offline control system, the user interface is good, easy and simple. 3. Cover protection: sealed chassis design of the co2 laser engraving cutting machine to ensure the safety of processing environment, a unique cover protection design to ensure that operators open the laser engraver cutter machine cover, the laser power supply to suspend work, to protect the safety of the operator. 4. Visualization working path: The laser is invisible light, in order to let the operator more specifically process the concrete place, the industrial laser engraving machine adopts the red light indication method to realize the precise positioning of the laser beam. 5. Optional electric lifting platform: up and down to adjust the working height of thebest laser engraving machines, to meet the processing requirements of different thickness of the object. At the same time optional knife working table of the co2 laser engraving cutting machine is suitable for different processing materials. 6. Drawer ladder design: it is easy for the best laser engraving machines to collect and obtain the cutting object.
