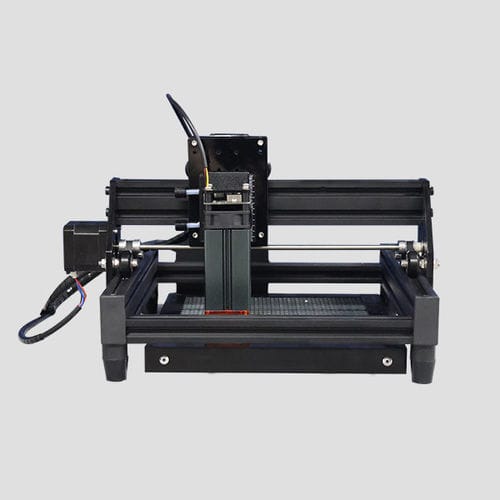

Laser marking and engraving machine PEDK-30

stonewoodpaper

Overview
The Portable Automatic Laser Engraving Machine PEDK-30 is a compact, modular 10W (450 nm) blue‑light laser system engineered for high‑precision engraving on natural leaves and a wide range of substrates. Designed for desktop use in small production, prototyping and customization workflows, it combines a high‑precision motion control platform, intelligent image processing and automatic positioning for repeatable results.

Key advantages

• Micron‑level focusing and motion control delivering engraving accuracy to 0.01 mm.
• Supports natural, untreated leaves as a substrate while preserving texture and color after engraving.
• Multi‑material capability: leaves, wood chips, bamboo chips, leather, selected metals, cardboard, stone, plastic and acrylic.
• Modular, compact design with quick assembly and small desktop footprint for easy storage and field deployment.
• Flexible connectivity: USB, Wi‑Fi and mobile app support for local and offline engraving workflows.
• Magnetic protective cover for safe, tool‑free access and reduction of stray laser emission.
• Funnel‑shaped smoke filter to limit smoke accumulation and extend laser module life during continuous operation.

Applications

• Cultural & creative products, personalized gifts and small batch production.
• Wedding keepsakes, corporate premium gifts, co‑branding on luxury items.
• Education, workshops and maker spaces for material testing and teaching.
• Home decor, craft and packaging prototypes (e.g., bookmarks, decorative panels, custom tags).

Materials compatibility

• Natural leaves (e.g., peace leaf, sycamore, maple, bodhi)
• Wood chips, bamboo chips
• Leather, selected metals
• Cardboard, stone, plastics, acrylic

Technical data (summary)
Product: Portable 10W Leaf Carving Laser Engraving Machine (Model: PEDK-30) — Brand: Perfect Laser
Product dimensions (mm): 320 × 280 × 200
Packaging dimensions (mm): 400 × 400 × 250
Laser focal length: 25 mm
Max workpiece placement height: 60 mm
Power input: DC 12V / 2A
Communication: USB; Wi‑Fi and mobile app (iOS/Android) supported
Cooling: Air cooling
Laser lifespan: ≥ 10,000 hours
Engraving area: 200 × 230 mm
Engraving precision: 0.01 mm
Supported image formats: JPEG, BMP, GIF, PLT, PNG, DXF
Material (frame): high‑strength aluminum alloy
Optical power: 10W — Wavelength: 450 nm — Laser module size (mm): 40 × 40 × 130 — Net weight (module): 260 g

Packaging & delivery
Professional sea/air packaging available. Typical lead time approx. 5 days; MOQ 1 unit. Shipping options and commercial terms available on request. Please confirm packing and delivery requirements for large orders.

Specifications

• Model number: PEDK-30
• Optical power: 10W (blue light)
• Wavelength: 450 nm
• Engraving area: 200 × 230 mm
• Engraving precision: 0.01 mm
• Focal spot precision: 0.02 mm
• Input voltage/current: DC 12V / 2A
• Laser lifetime: ≥ 10,000 hours
• Supported platforms: Windows, MacOS, APP (iOS & Android)
• Supported image formats: JPEG, BMP, GIF, PLT, PNG, DXF
• Material: high‑strength aluminum alloy
