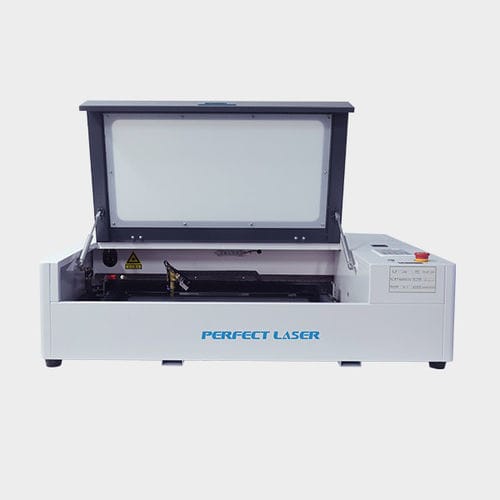

CO2 laser engraving machine PEDK-6040S

woodglassacrylic

Product description
The PEDK-6040S is a portable desktop CO2 laser engraving and cutting system engineered for artistic hammer-painting effects on glass and for precision processing of non-metal materials such as acrylic and wood. It combines a sealed CO2 tube with a rigid aluminum chassis to deliver repeatable surface patterns, controlled crack effects and fine detail reproduction for both creative and light-industrial applications.

Main features

• Dual-mode operation: engraving and cutting in a single machine.
• Stable long-term operation after rigorous testing to reduce component replacement and operating cost.
• High-detail restoration: accurately reproduces complex patterns and fine text.
• Intelligent offline control: can operate independently without network connection.
• Power-failure resume: records progress and continues from the breakpoint after power restore.
• Rigid body: thickened aviation-grade aluminum frame for high stiffness and stable positioning.
• Industrial-grade laser head to shorten processing time and increase throughput.
• Sealed CO2 laser tube to protect against dust and extend service life.
• Branded stepper motors for strong torque and stable 24/7 performance.

Applications
Suitable for artistic creation, commercial customization (souvenirs, gifts), revitalization of cultural craft techniques, architectural glass decoration, lighting components and industrial design prototypes.

Applicable materials

• Glass
• Acrylic
• Two-color boards
• Light woods (micro-wood boards)
• Hardwoods (red wood boards)
• Corrugated and hollow cardboard
• Medium-density cardboard / MDF
• Leather (genuine and synthetic)
• Textiles
• Rubber sheets
• Resin

Technical data (summary)
Product name: Glass hammer-painting laser engraving machine
Model: PEDK-6040S
Laser type: CO2 sealed-off laser tube
Laser wavelength: 10.64 μm
Processing area: 600 × 400 mm
Operating voltage: 220V / 110V
Power adjustment precision: 0.01%
Worktable: honeycomb worktable
Engraving accuracy: 0.01 mm
Cutting thickness: 0–15 mm
Water temperature requirement: 0–45°C
Supported systems: Win7 / 8 / 10 / XP
Machine weight: 55 kg
Positioning accuracy: 0.01 mm
Cooling method: water cooling (chiller optional)
Engraving speed: 0–400 mm/s
Cutting speed: 0–30 mm/s
Minimum engraving size: Chinese characters 2×2 mm, letters 1×1 mm
Machine size: 1050 × 750 × 280 mm

Packaging & delivery (summary)
Sea-worthy or air-worthy packaging; professional packing and logistics; standard export crating for safe shipment.

Competitive advantages (summary)
Precise CO2 laser solution optimized for glass-hammer effects; reliable components and lifetime maintenance service; flexible payment and export experience.

Technical specifications

• Model number: PEDK-6040S
• Brand: Perfect Laser
• Place of origin: Hubei, China
• Certification: CE
• Laser wavelength: 10.64 μm
• Processing area: 600 × 400 mm
• Operating voltage: 220V / 110V
• Power adjustment precision: 0.01%
• Engraving / positioning accuracy: 0.01 mm
• Cutting thickness: 0–15 mm
• Engraving speed: 0–400 mm/s
• Cutting speed: 0–30 mm/s
• Supported systems: Win7 / 8 / 10 / XP
• Machine weight: 55 kg
• Machine size: 1050 × 750 × 280 mm
• Cooling: water cooling (chiller optional)
• Water temperature requirement: 0–45°C
• Warranty: lifetime maintenance service
