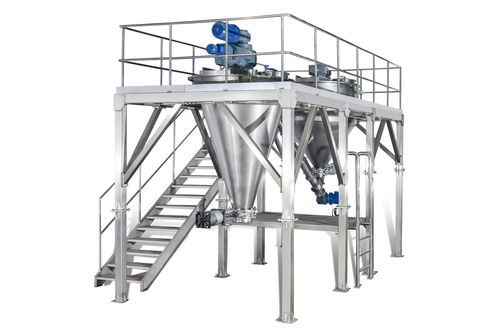

Conical screw mixer PNA series

planetarybatchsolid/liquid

The PerMix PNA series Conical Auger Mixer, also known as a Nauta Mixer®, is a batch mixing equipment used widely in applications that require gentle mixing and minimal heat generation without any product distortion. Because no seals or bearings are exposed in product zone, there is no risk of lubricant contamination. The PerMix PNA series Conical Mixer is featured by its very low energy consumption, low maintenance cost, but high performance of mixing. A spiral screw (or two, three screws according to specified application) inside of a PerMix PNA series Conical Auger Mixer rotates by its own axle parallel and near the wall of the cone vessel. It lifts the powders around it from bottom to the top, and then the powder falls down due to the gravity. At the same time, the spiral screw rotates around the center of the cone like a planetary, so that the powders in every corner of the cone can be mixed by the screw. a. Screw Type We offer single screw, double screw and triple screw to give different mixing intensity. b. Drive system Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc. c. Construction Material and Finish We are able to offer our PVR Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Finish of internal and external finish can be dull polished, 180 grit polished (food grade), or mirror polished. For abrasive materials we offer hardened steel as the contact part. d. Heating/Cooling jacket Jacketed trough for heating/cooling operation
