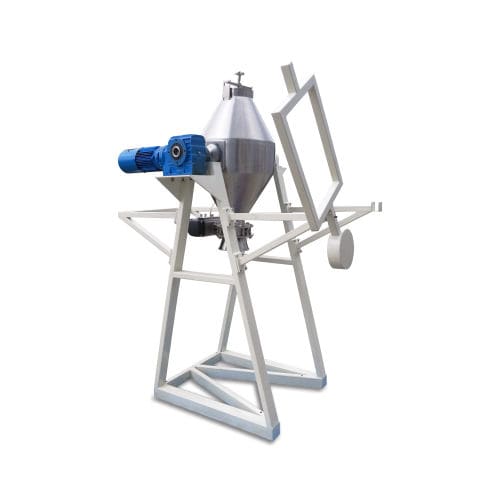

Double cone mixer PDC series

batchsolid/liquidpowder

The PerMix Double Cone Mixers are one type of Tumbler Mixers, which perform the mixing by turning the vessel around the shaft. They are unique mixers suitable for rapid and uniform mixing of free-flowing dry powders, granules, and crystals. With the simplest structure among all mixers, double cone mixers are featured for low investment, easy operation, discharging without residual, quick cleaning, and simple maintenance. The PerMix PDC series Double Cone Mixer provides a gentle high-flowing mixing process for solids/solids in a proportion of up to 1:100.000 with the possibility of using an intensifier bar to enhance the mixture, and solids/liquids in powder or granulate form with different specific weights. Our Double Cone Mixer can also be configured in a vacuum mixer/dryer configuration allowing for mixing & drying under vacuum and includes heating & cooling options • Double cone mixers have minimized distortion to the materials due to absence of any moving blades • Double cone mixers have no contamination due to the closed area by only stainless steel walls • Double cone mixers are especially suitable to mix powders or granules which are temperature sensitive, easily oxidizable, crystallized, volatile, poisonous or with irritating smell • Many options are available as variable speed, automatic stop in discharge position, air operated valve, touch screen operating panel, safety fence, etc.
