Public address system ADM-4

Product Overview

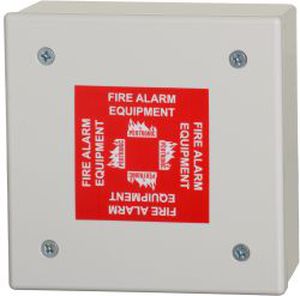

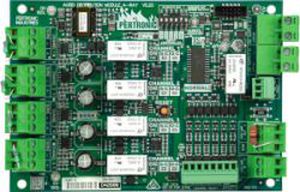

The Pertronic Audio Distribution Module 4-Way (ADM-4) provides multiple independently controlled and monitored 100 V rms audio lines (channels). It enables multiple spurs from a single 100 V audio line while preserving fault supervision and simplifying installation of public address and evacuation audio systems.

The system built with ADM-4 modules will continue operating even if some channels develop faults. If any channel becomes short-circuited, the shorted channel is isolated and the remaining channels continue to provide audio after a brief interruption (approximately 20 seconds). The module continuously monitors isolated channels and will automatically reconnect a channel once the fault is cleared.

The built-in supervision system continuously checks the 100 V output lines for open-circuit and short-circuit conditions, regardless of whether the system is broadcasting an evacuation message, background audio, or is idle.

Each channel may be permanently enabled using the local DIP switch or enabled/disabled via a remote Channel Select input.

The ADM-4 independently supervises output channels and signals a fault condition to the connected amplifier or evacuation generator. The module includes a Form C clean-contact fault relay for connection to monitoring equipment.

Features

• Simplifies installation of audio evacuation and PA systems by providing multiple monitored audio channels
• Automatic isolation of a short-circuited channel allowing audio to continue on remaining channels
• Assists compliance with fault isolation requirements in AS 1670.1: 2018, section 2.6
• Channel Select input for individual channel switching
• 80 W switching capacity per channel
• On-board DIP switch for permanent channel selection
• Fault relay with Form C clean contact
• Separate open-circuit and short-circuit indicators for each channel
• Control inputs can be isolated from on-board circuitry
• User-selectable end-of-line (EOL) input resistor to suit amplifier requirements
• Compatible with Pertronic EA60, EA120, Pertronic evacuation amplifiers, and amplifiers controlled by the Pertronic EVAC Generator

Ordering Information
Product Code | Description
ADM-4 | Audio Distribution Module, 4 Way

Documents available
Datasheet and Installation Note are available for this product.

Technical specifications

• Multiple independently controlled and monitored 100 V rms audio output channels (4-way)
• Per-channel supervision for open-circuit and short-circuit faults
• Automatic isolation of shorted channels with continued operation of unaffected channels (brief interruption ~20 seconds)
• Automatic reconnection of channels when faults are cleared
• Local DIP switch to permanently enable channels
• Remote Channel Select input for individual channel switching
• 80 W switching capacity per channel
• Form C clean-contact fault relay for connection to monitoring equipment
• Separate indicators for open-circuit and short-circuit faults on each channel
• Control inputs can be isolated from on-board circuitry
• User-selectable end-of-line (EOL) input resistor configurable to amplifier requirements
• Compatibility: Pertronic EA60, EA120, Pertronic evacuation amplifiers and EVAC Generator-controlled amplifiers
• Ordering code: ADM-4
