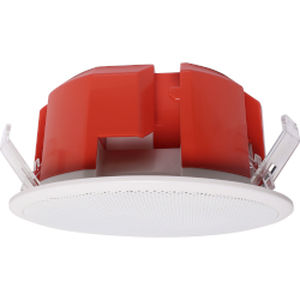

Ceiling loudspeaker C2270

fire-resistantpublic

Overview
The 100mm Ceiling EWIS Speaker 6W (C2270) is an AS ISO7240.24-certified 100V‑Line speaker. This version eliminates cable glands to streamline installation cabling and includes a pluggable terminal block to simplify cable termination. The speaker has a 70mm depth with an ultra thin bevelled edge and a steel coated grille as a premium finish. Ceiling cutout diameter is 140mm. All components are manufactured from high quality, long lasting, flame retardant materials and the speaker snap-fits into the ceiling with a patented 3-way spring latching system.

Features

• High quality speaker driver developed for BGM, paging and emergency warning applications
• Patented 3-way latching system for a neat, snag-free installation
• 140mm ceiling cutout
• Fitted with 4-way pluggable wire protect terminal for loop in, loop out wiring
• Integral cable channel in rear housing for easy running of connection cables
• Fitted with flame retardant safety cover
• Fitted with supervisory capacitor for line monitoring
• 5 year warranty

Ordering information
Product Code | Description
C2270 | Speaker 100mm (4") 100V 6W Meta Grill Ceiling Speaker White AS ISO7240.24

Technical specifications

• Certification: AS ISO7240.24
• Model: C2270
• Speaker size: 100mm (4") ceiling speaker
• Line type: 100V‑Line
• Power rating: 6W
• Driver application: BGM, paging, emergency warning
• Ceiling cutout diameter: 140mm
• Depth: 70mm
• Grille: steel coated, ultra thin bevelled edge finish
• Termination: 4-way pluggable wire protect terminal for loop in/loop out
• Rear housing: integral cable channel
• Monitoring: fitted with supervisory capacitor for line monitoring
• Safety: flame retardant safety cover and flame retardant materials for components
• Mounting: patented 3-way spring latching system, snap-fit installation
• Warranty: 5 year
• Finish/color: White
