Audio amplifier ADM-2-PMB125

powervoltageswitching

Overview
The Audio Distribution Module (ADM-2-PMB125) provides two independently supervised 100 V rms audio lines. It enables two separate audio channels covering the same area or evacuation zone and maintains audio transmission on the unaffected channel if the other channel develops a fault. A shorted channel is disconnected after a brief delay and is continuously monitored for automatic reconnection when the fault clears. The module can be mounted remotely from the amplifier and is powered from an analogue addressable loop or a separate 24 V dc supply. Built-in supervision monitors the 100 V outputs for open-circuit and short-circuit faults and reports fault conditions to the amplifier or evacuation generator.

Features

• Provides duplicate supervised audio channels for simplified evacuation system installation
• Isolates a short-circuited channel after a brief delay; allows continued transmission on the other channel
• 80 W switching capacity per channel
• Powered from analogue addressable loop or separate 24 V dc power supply
• Assists compliance with the fault isolation requirements of AS 1670.1: 2018, section 2.6
• Earth connection for screened cable on the 100 V line
• Local LEDs indicate current (steady) and historical (flashing) faults; separate S/C and O/C indicators per channel
• Fault relay with form C clean contact; reset switch clears historical fault indications
• Built-in analogue addressable loop isolator disconnects the loop if it develops a short circuit
• User-selectable end-of-line input resistor configurable to amplifier requirements
• Compatible with Pertronic evacuation amplifiers and Pertronic EVAC Generator
• Compatible with selected third-party equipment including Tyco QE 90 EWIS and AMPAC EV3000

Ordering Information
Product Code | Description | Availability

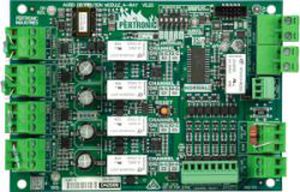

ADM-2 | Audio Distribution Module, 2 Way, Printboard Only | Discontinued

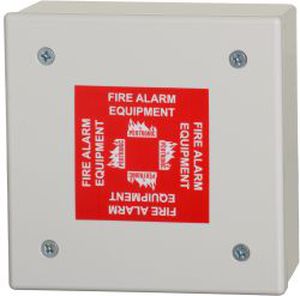

ADM-2-PMB125 | Audio Distribution Module, 2 Way, Mounted in PMB125 Enclosure |

Technical specifications

• Creates two independently supervised 100 V rms audio lines (channels)
• 80 W switching capacity per channel
• Short-circuit isolation of a channel with automatic reconnection when fault cleared
• Monitors for open-circuit and short-circuit faults on 100 V output lines
• Signals faults to amplifier or evacuation generator (fault relay with form C contact)
• Local fault LEDs with current and historical indicators; separate S/C and O/C LEDs per channel
• Reset switch to clear historical fault indications
• Powered from analogue addressable loop or separate 24 V dc supply
• Built-in analogue addressable loop isolator
• User-selectable end-of-line input resistor configurable to amplifier requirements
• Earth connection for screened cable on 100 V line
• Compatibility: Pertronic evacuation amplifiers and EVAC Generator; third-party compatibility with Tyco QE 90 EWIS and AMPAC EV3000
