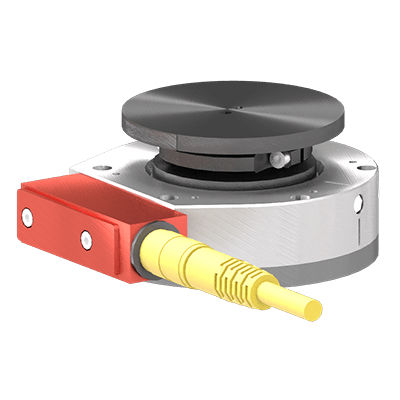

Air-operated robotic compliance unit / collision sensor QS-50

for machine tools

With moments trip point from 0.3 to 30 Nm, small payload collision sensors will be the most appropriate models for your applications such as pick and place or dispensing. Dynamically variable collision sensor that operate on air pressure. Breakaway threshold adjusts to match the working force ranges of robot/application Non compressive, metal to metal seal for reliable and consistent operation Opening of QuickSTOP air chamber at impact, pressure exhaust and switch signal stop the robot Repeatability - X, Y - 0,03 mm Repeatability - Z - 0,01 mm Rotational Repeatability - ± 0,02 ° Axial Compliance Vertical - 4,30 mm Compliance Angle - 5 ° Rotary Compliance - No limit Torque Trip Point - 2.2 - 14.0 Nm Moment Trip Point - 2.6 - 11.8 Nm Weight - 0,290 kg Diameter - 71,0 mm Profile - 35,0 mm Center of Mass - 20,3 mm Average response time - 4-7 ms Dust Protection - Foam collar supplied Switch - High reliability aircraft snap acting type. UL/CSA approved. Average cyclelife : 7 million cycles Operating Pressure - 1.0 - 6.0 bar Operating Temperature - Min. 0°C / Max. 70°C
