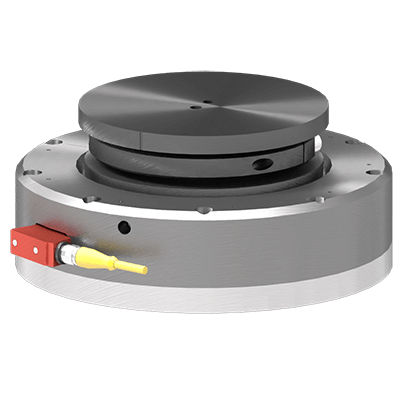

Air-operated robotic compliance unit / collision sensor QS-3000

automated loading/unloading

Uniquely designed to help protect your automation equipment - from laboratory to car construction, our collision sensors meet your productivity issues. With moments trip point from 150 to 2300 Nm, heavy payload collision sensors will be the most appropriate models for your applications such as handling of larger and heavier items. Repeatability - X, Y - 0,04 mm Repeatability - Z - 0,01 mm Axial Compliance Vertical - 14,30 mm Compliance Angle - 5 ° Rotary Compliance - 25° Torque Trip Point - 153 - 478 Nm Moment Trip Point - 105 - 414 Nm Weight - 12,200 kg Diameter - 260,0 mm Profile - 115,0 mm Center of Mass - 66,0 mm Average response time - 4-18 ms Dust Protection - Foam collar supplied Switch - High reliability aircraft snap acting type. UL/CSA approved. Average cyclelife : 7 million cycles Operating Pressure - 1.0 - 6.0 bar Operating Temperature - Min. 0°C / Max. 100°C
