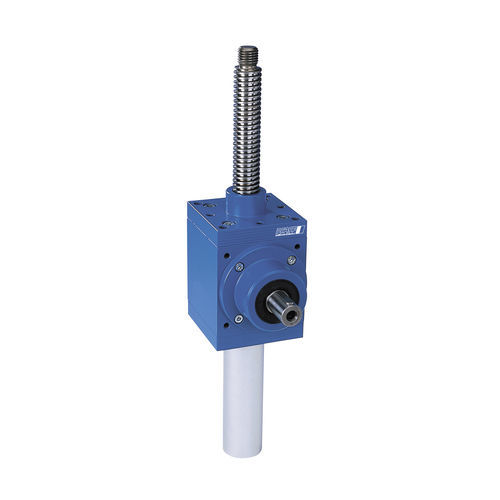

Translating screw jack SHG

bevel gearhigh-speed

The SHG high-speed screw jack is available in four different sizes for a load range from 1.5t to 9t. The use of a spiral-toothed bevel gearbox ensures high efficiency and a long service life. SHG series actuators are used in applications requiring high dynamics and high duty cycle.  Features and processing: • 4 different sizes • Drive motor speeds of up to 3,000 rpm • Self-locking trapezoidal spindle • Separate lubrication circuits: Tr-screw with grease lubrication and bevelgear with oil immersion lubrication • Case hardened and ground teeth • Bevel gear in 2 gear ratios (2: 1 and 3: 1 depending on requirements)
