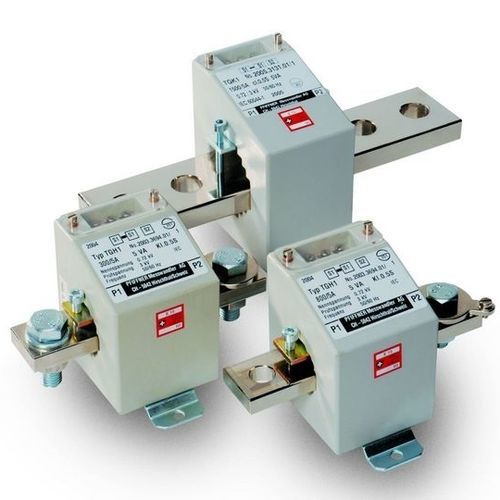

Current transformer TGHcast resinplug-in
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- cast resin
- Mounting
- plug-in
- Primary voltage
720 V
- Primary current
Max.: 1,500 A
Min.: 100 A
- Frequency
50 Hz, 60 Hz
Description
The multi-range current transformer with 5 VA nominal burden and accuracy class 0,5 S is qualified for electronic metering. Due to the extendet measuring range, the whole range from 100 to 1500 A can be covered by 3 courant transformers with the ratios of 300/5, 800/5 and 1500/5 A. These transformers are applied as bus-bar-types and plug-in CT’s as well.
• Polyurethane cast resin design
• For highest mechanical and physical demands
• Large measuring range up to accuracy class 0.2 S
• Primary bar is dismountable
• Official calibration possible
