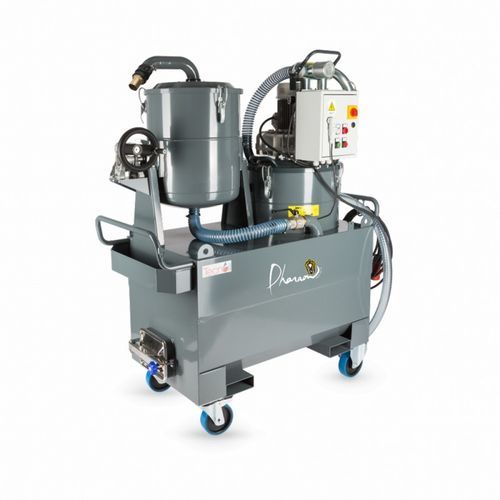

Industrial vacuum cleaner TC400IFwetchipoil and chip
Add to favorites
Compare this product
Characteristics
- Domain
- industrial
- Type
- wet
- Substance vacuumed
- chip, oil and chip, liquids
- Power source
- electric, three-phase
- Other characteristics
- heavy-duty, with solid-liquid separator
- Applications
- metal machining, for mechanical industry, for machine tools
- Power
Max.: 4 kW
(5.44 hp)Min.: 4 kW
(5.44 hp)- Capacity
Max.: 0.45 m³
(15.8916 ft³)Min.: 0.4 m³
(14.1259 ft³)- Air flow
Max.: 420 m³/h
(14,832.2 ft³/h)Min.: 420 m³/h
(14,832.2 ft³/h)- Vacuum
Max.: 314 mbar
(5 psi)Min.: 314 mbar
(5 psi)- Noise level
Max.: 76 dB
Min.: 76 dB
- Weight
Max.: 225 kg
(496.04 lb)Min.: 225 kg
(496.04 lb)
Description
Overview
The TC400IF is a three-phase industrial vacuum designed for suction of liquids with solids (oils and metal chips). Vacuum for oils and chips, suitable for general and precision engineering, bar turning and sharpening.
Main functions
Operation and recovery
Liquids with solids (oils, chips, granules) are vacuumed and solids separated. An air flow-reversal system (200 L/min) enables simultaneous suction and discharge. Larger waste is collected in a 50 L filtration basket and liquids are recovered in the main 400 L tank. Two filter media are integrated: a 3D superweb filter and a 20 μm polypropylene liquid filter. For safety, a level control probe triggers automatic motor stop in case of malfunction.
Recommended applications
Characteristics / technical specifications
The TC400IF is a three-phase industrial vacuum designed for suction of liquids with solids (oils and metal chips). Vacuum for oils and chips, suitable for general and precision engineering, bar turning and sharpening.
Main functions
- Suitable for continuous operation
- Single unit capable of vacuuming, separating and recovering cutting oils
- Flow-reversal emptying system
Operation and recovery
Liquids with solids (oils, chips, granules) are vacuumed and solids separated. An air flow-reversal system (200 L/min) enables simultaneous suction and discharge. Larger waste is collected in a 50 L filtration basket and liquids are recovered in the main 400 L tank. Two filter media are integrated: a 3D superweb filter and a 20 μm polypropylene liquid filter. For safety, a level control probe triggers automatic motor stop in case of malfunction.
Recommended applications
- General engineering
- Precision engineering
- Bar turning
- Sharpening
- Automotive industry
Characteristics / technical specifications
- Max vacuum (mmH2O): 3200
- Max flow (m3/h): 420
- Capacity (L): 400 + 50 (tank + basket)
- Sound level (dB): 76
- Voltage (V): 400
- Power (W): 4000
- Flow reversal rate: 200 L/min
- Integrated filters: 3D superweb filter and 20 μm polypropylene filter
- Level control probe with automatic stop
- Weight: 225 kg
- Vacuum family: Industrial
