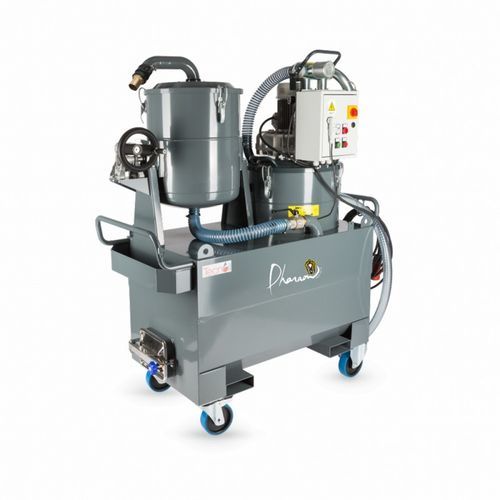

Industrial vacuum cleaner TC400T43

wetoil and chipliquids

Overview
The TC400T43 (TC400IF) is a three-phase industrial vacuum designed for extraction of loaded liquids (oils and chips). Ideal for general and precision engineering, bar turning and grinding. Enables suction of fluids containing chips and granules, with separation of solids and recovery of liquids for reuse.

Main features

• Suitable for continuous operation.
• Single unit capable of suctioning, separating and enabling reuse of cutting oils.
• Drain system with flow inversion (allows simultaneous suction and discharge).
• Separation of liquids and solids (coarse debris collected in a filtration strainer).

Filtration and discharge

• Air flow inversion system providing simultaneous discharge (inversion system flow rate: 200 L/min).
• Filtration strainer for coarse debris — capacity 50 liters.
• Liquid recovery tank: 400 liters.
• Two integrated filter media: a 3D Superweb filter and a polypropylene liquid filter (20 μm).
• Integrated level probe for automatic motor stop in case of overflow or malfunction.

Recommended applications

• General engineering
• Precision engineering
• Bar turning
• Grinding
• Automotive industry and other workshops handling oils and chips

Technical specifications

• Maximum vacuum (mmH2O): 5100
• Maximum flow (m3/h): 320
• Capacity (L): 400 + 50 (400 L tank + 50 L strainer)
• Sound level (dB): 76
• Voltage (V): 400 (three-phase)
• Power (W): 4000
• Air flow inversion rate: 200 L/min
• Filter media: 3D Superweb filter and polypropylene 20 μm
• Level probe for automatic stop
• Vacuum family: Industrial
