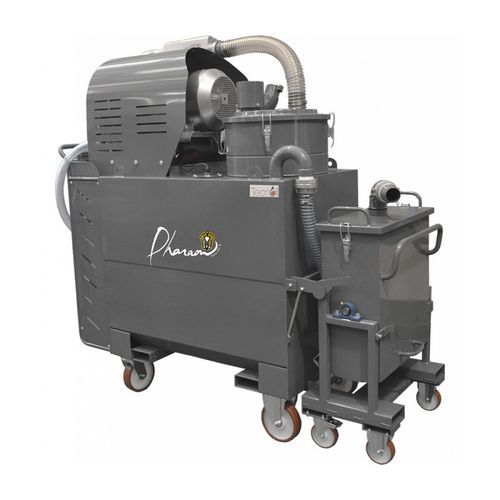

Industrial vacuum cleaner TC600

wetoil and chipsingle-phase

Presentation
The TECNOIL TC600 is the largest and most powerful model in the TECNOIL range, specialized in suction and separation of cutting oils and metal chips. It combines strong suction power with a high-capacity recovery system for contaminated liquids, suited to demanding industrial environments.

Main functional features

• Suction and separation of oils and chips
• Liquid recovery tank: 610 L
• Solid/chip recovery tank: 50 L
• Self-powered drain pump ensuring continuous suction power
• Robust design for machining, metalworking and construction sites

Applications / sectors

• Mechanical industry
• Precision machining and bar turning
• Automotive industry
• Toolmaking

Benefits / key points

• Combination of high suction power and large recovery capacity
• Removable, ergonomic tank for easier emptying
• Designed for heavy-duty use and site conditions
• Powerful model adapted to contaminated liquids

Characteristics / technical specifications

• Maximum vacuum (mmH²O): 6000
• Maximum flow (m3/h): 480
• Liquid tank capacity (L): 610
• Solid/chips tank capacity (L): 50
• Noise level (dB): 78
• Voltage (Volts): 230
• Power (W): 11000
• Vacuum family: Industrial
• Weight (kg): 405
• Drain pump: self-powered supply to maintain suction power
