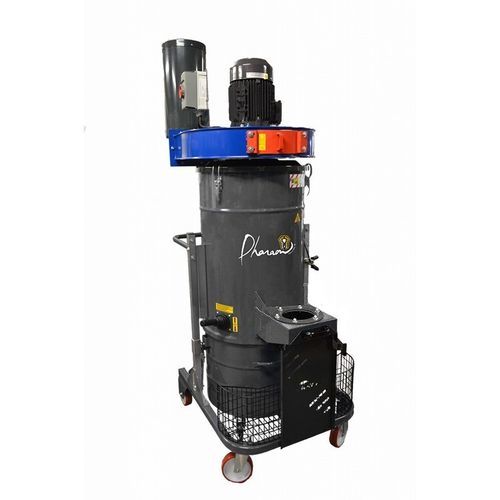

Bag dust collector ZFR EV AP 560 K5

manual cleaningfor the food industrycompact

Overview
High-flow industrial dust collector for capturing fine, light airborne particles. The ZFR EV AP 560 K5 is engineered for continuous extraction of fine dust in woodworking and food-processing environments. Its epoxy-painted steel construction provides durable performance in industrial conditions.

Key features

• High flow with three-phase centrifugal fan suitable for continuous extraction applications.
• New-generation IE3 motor for improved energy efficiency.
• Primary filter: antistatic polyester bag filter, class M (ANT-M 1µ).
• Large filter area: 50,000 cm² for effective retention of fine particles.
• Manual de-dusting system with handle to dislodge deposits into the collection hopper for filter cleaning.
• 100 L collection hopper mounted on industrial wheels for easy removal and emptying.
• Robust epoxy-painted steel industrial construction.
• Can be used mobile or connected directly to production equipment.
• Option: extraction arm for source capture.

Benefits

• Designed for continuous capture of fine dust in demanding environments.
• Mobility and compact footprint enable flexible use across workstations.
• Configuration ensures stable suction performance and high particle retention.

Technical specifications

• Power: 5.5 kW
• Weight: 130 kg
• Max depression (mmH2O): 470
• Max flow (m3/h): 3000
• Capacity (L): 100
• Sound level (dB): 74
• Filter area (cm²): 50000
• Voltage (Volts): 400
• Primary filter: Antistatic polyester bag filter, class M (1µ)
• Filtration: ANT-M 1µ
• Filter cleaning: manual (handle)
• Fan: three-phase centrifugal
• Motor: new-generation IE3
• Dimensions (cm): 132x78x218 h
• Options: mobile version, direct connection to equipment, extraction arm optional
