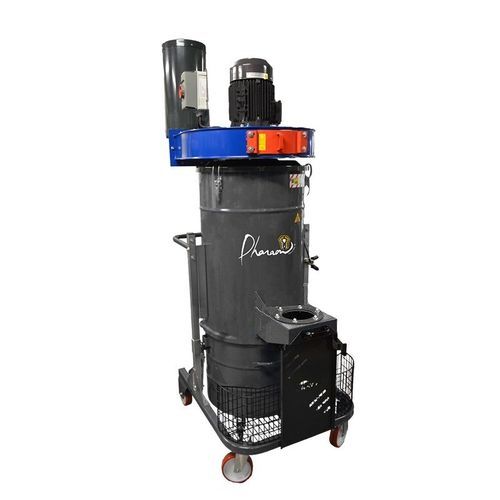

Cartridge dust collector ZFR EVAP 560 K5PN

pulse-jet backflowfor the food industryself-cleaning

Overview
The ZFR EVAP 560 K5PN is a mobile industrial dust collector designed for capture of fine and volatile dusts in sectors such as construction and food processing. Mounted on heavy-duty wheels, it enables easy relocation between workstations and offers operational flexibility. Model: ZFREVAP560K5PN.

Operation and main components

• High-performance three-phase centrifugal fan driven by an IE3 motor for improved energy efficiency.
• Antistatic polyester cartridge filtration, class M (1 µm), with a large filtering surface (106,000 cm²) to retain fine particles effectively.
• Automatic PN back-pulse cleaning system (counter-current air pulse) allowing cleaning without stopping the unit.
• Removable 100 L collection bin for easy dust collection and disposal.
• Epoxy-painted steel construction providing durability in industrial environments.
• Optional 3 m extraction arm for source capture or connection to production equipment as required.

Key advantages

• Effective ANT-M filtration suitable for fine dusts.
• Automatic PN de-clogging system ensuring continuous filtration and simplified maintenance.
• Centrifugal fan with IE3 motor for optimized energy performance.
• Removable 100 L collection bin.

Technical specifications

• Weight: 160 kg (value from datasheet)
• Maximum vacuum (mmH2O): 470
• Maximum airflow (m3/h): 3000
• Capacity: 100 L
• Sound level (dB): 74
• Filtering surface: 106000 cm²
• Voltage: 400 V
• Power: 5.5 kW
• Dimensions (cm): 132 x 78 x 250 (H)
• Filter cartridge: antistatic polyester, class M (1 µm)
• Cleaning system: automatic PN back-pulse (counter-current air pulse)
• Construction: epoxy-painted steel
• Mobility: mounted on industrial wheels
