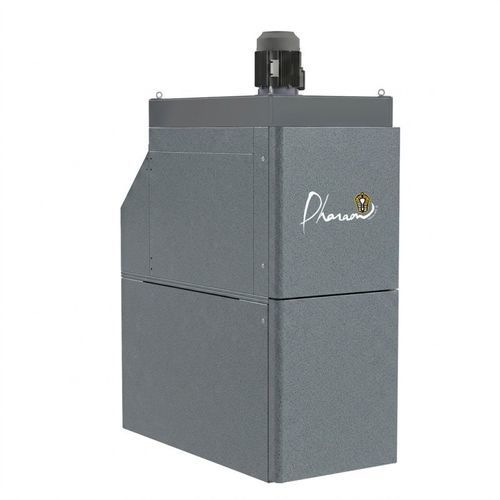

Cartridge dust collector PHADUST4 ELF

for the food industryfor the pharmaceutical industryfor welding fumes

Presentation
Designed for demanding industrial environments, the PHADUST4 ELF is an industrial dust collector intended for pharmaceutical, food-processing, welding and production workshops exposed to continuous dust emissions. It provides continuous capture of dust and fine particles with industrial-grade filtration.

Power and performance
Three-phase 400 V power supply. Maximum vacuum: 350 mmH₂O. Airflow up to 5400 m³/h, enabling sustained extraction performance for continuous operations.

Filtration and collection

• Equipped with 4 antistatic cartridge filters, M-class.
• Total filter surface: 100000 cm².
• Particle retention down to 1 µm.
• Removable collection tank with 90 L capacity for rapid emptying.

Recommended applications

• Pharmaceutical industry
• Food-processing industry
• Manufacturing workshops and welding operations

Technical specifications

• Model: PHADUST4 ELF
• Dimensions: 90 x 183 x 259 h (cm)
• Maximum vacuum: 350 mmH₂O
• Maximum airflow: 5400 m³/h
• Capacity: 90 L
• Sound level: 73 dB
• Filter surface: 100000 cm²
• Voltage: 400 V
• Power: 5500 W
• Weight: 550 kg
• Filter class (IEC 60335-2-69): Polyester - ANT M
• Number of cartridges: 4 antistatic cartridge filters
• Dust retention: down to 1 µm

Maintenance and compliance

• Removable tank and accessible cartridge housings simplify emptying and filter replacement.
• Regular inspection and cartridge replacement recommended according to operating conditions.
• Conforms to IEC 60335-2-69 filtration requirements; options for replacement filters and connection accessories available.
