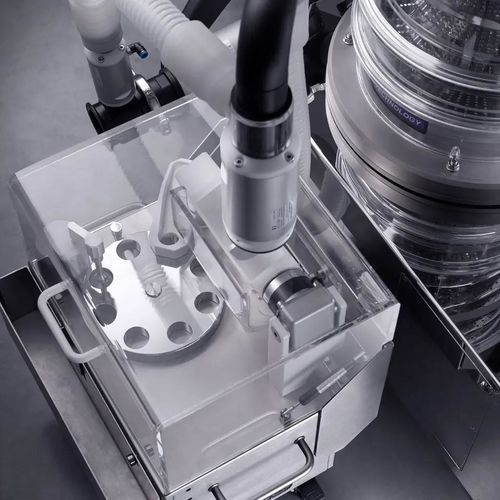

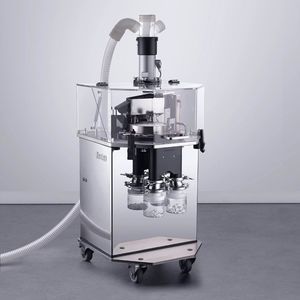

Mass tester iTest 2P

thicknessR&Dfor production

Overview
The iTest 2-parameter tester performs in-process measurement of capsule/tablet weight and length and integrates with the polisher HMI to enable global reporting and audit trails.

Key benefits

• Continuous verification of weight and length during production
• Dust-tight vacuum transfer for contamination control
• Compatible with any capsule filler; stand-alone option for older machines
• Software compliant with 21 CFR Part 11; user management and USB data export
• cGMP-oriented design with clear separation of product and mechanical areas
• Containment options up to OEB4 (C version)

Product description
The IPC (In Process Control) iTest integrates precision weighing, length and thickness measurement into a compact module for automatic sampling and feedback to capsule fillers. It supports automated sampling, alarm generation when specifications are violated, and automatic batch quality reporting. Available in Dust-Tight (DT) and Containment (C ≤ OEB4) versions. All pharmacopoeia methods and acceptance criteria are provided in the product documentation.

Physical properties
Packaging: Wooden Box
Net weight: 60 kg
Footprint (LxW): 465 mm x 385 mm
Inlet height: 970 mm

Capacity
Minimum product size: Ø 4 mm (Caps 4)
Maximum product size: Ø 25 mm (Caps 00)

Utilities
Requested air extraction: 120–200 m3/h
Dust extraction connection: Flex Connect © Ø56.3 mm
Requested compressed air: 80–350 l/min (min. 4.5 bar); connection KS4
Power supply: 100–240 VAC ±10 %; 50/60 Hz
Samples conveying: Dust-tight vacuum conveying (optional Venturi)

Environment
Operating temperature: 15–25 °C
Maximum relative humidity: 60%

Material
Metal contact parts: Stainless Steel 316L; aluminum with surface treatment
Non-metal contact parts: POM C, PU, Silicone
Contact finish: Ra ≤ 0.8 µm
Frame: Stainless Steel 304, mirror polished, mounted on wheels
IQ/OQ protocol and material certificates: Available

Application
Product type: Tablet, Capsule
Application area: R&D, Manufacturing, Quality control
Function: In-process quality control with feedback to filling equipment

Weight Measurement
Weighing cell: Sartorious WZA224-L
Weighing unit: 1 mg / 0.1 mg (adjustable)
Weighing range: 10 mg – 50 g
Weighing accuracy: ±1 mg (stable environment)

Length Measurement
Measurement principle: Stepper-motor driven
Measurement unit: mm (inch)
Measurement range: 3 – 25 mm
Measurement accuracy: ±0.1 mm

Thickness Measurement
Drive: Stepper-motor
Measurement principle: Magnetic sensor
Measurement unit: mm (inch)
Measurement range: 3 – 18 mm
Measurement accuracy: ±0.05 mm

Technical specifications

• Product name/series: iTest (iRange)
• Function: In-process quality control (weight & length)
• Measured parameters: Weight and length (2 parameters); thickness measurement included
• Containment: DT (Dust Tight) or C (≤ OEB4)
• Compliance: 21 CFR Part 11 (software); cGMP design
• Packaging: Wooden box; net weight 60 kg; footprint 465 x 385 mm; inlet height 970 mm
• Utilities & connections: see Utilities section
• Documentation: IQ-OQ protocol and material certificates available
