Displacement force testing machine iTest 4P

hardnessweightdimensions

Overview
The iTest – 4 parameters IPC tester is a new generation of automatic tablet testing system for integrated process control (IPC). Intended for use as a stand-alone equipment with its own HMI or in combination with an upward conveying tablet deduster, the module offers precise analysis capabilities for tablet weight, thickness, hardness and length/diameter.

Key benefits

• Real-time verification of weight, thickness, length/diameter and hardness
• Dust-free vacuum transfer
• Compatible with any tablet press
• 21 CFR Part 11 compliance
• cGMP design, easy to handle & wash
• Clear separation between product and mechanical areas
• Containment up to OEB4

Description

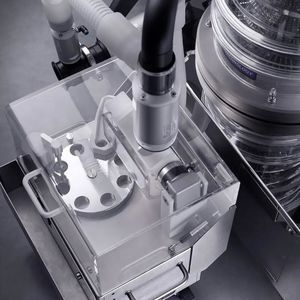

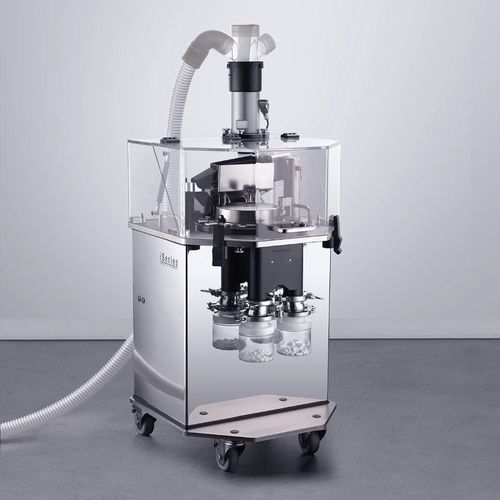

This tablet testing unit is engineered to maintain strict separation between dust, fragments and the production flow, making it suitable for continuous manufacturing lines. Tablets are sampled directly from the press and transported by vacuum through a flexible hose to the tester, where each parameter is measured according to pre-programmed recipes. The design emphasizes easy cleaning and safe maintenance, with full separation of the product zone from mechanical and electrical components. All product-contact parts are fully accessible and tool-free to disassemble to streamline service and ensure hygienic conditions. The system is available with containment up to OEB4.

Technical characteristics / specifications

• Model / Denomination commerciale: iTest
• Product range: iRange
• Product type: Tablet
• Function: Quality control
• Application area: R&D, Manufacturing
• Weighing cell: Sartorious WZA224-L
• Weighing unit: 1 mg / 0,1 mg (adjustable)
• Weighing range: 10 mg - 50 g
• Weighing accuracy: ± 1 mg in stable environment
• Thickness measurement - Drive: Stepper-Motor; Measurement principle: Magnetic Sensor; Unit: mm (inch); Range: 3 - 18 mm; Accuracy: ± 0,05 mm
• Hardness measurement - Drive: Stepper-Motor; Measurement principle: Strain measurement strip (DMS); Measurement range: 4 - 400 N (extended 8 - 800 N); Measurement accuracy: ± 2 N (with 800 N ± 4 N)
• Diameter measurement - Drive: Stepper-Motor; Measurement principle: Stepper-Motor; Unit: mm (inch); Range: 3 - 25 mm; Measurement Range (Oblong): 5 - 20 mm; Accuracy: ± 0,1 mm
• Force measurement: Load measurement cell
• Force units: N (Kp, Sc)
• Force increase: 250 N/s
• Work Speed (Pressure Jaw): 0,35 mm/s
• Approach & Return Speed (Pressure Jaw): 8,5 - 17 mm/s adjustable
• Minimum product size: Ø 4 mm
• Maximum product size: Ø 25 mm
• Containment level: Dust Tight / Contained (up to OEB4 available)
• Samples conveying: Dust-Tight Vacuum Conveying (optional Venturi)
• Requested air extraction: Between 120 - 200 m3/h
• Dust extraction connection: Flex Connect © (Ø56,3 mm)
• Requested compressed air: 80 - 350 l/min - Min. 4,5 bar
• Compressed air connection: KS4
• Power supply: 100 to 240 VAC ± 10 %
• Frequency: 50 Hz / 60 Hz
• Operating temperature: 15 - 25 °C
• Maximum relative humidity: 60%
• Metal contact parts: Stainless Steel 316L; Aluminum with surface treatment
• Non-metallic contact parts: POM C - PU - Silicone
• Contact parts finishing: Ra ≤ 0,8 µm
• Frame parts: Stainless Steel 304
• Frame finishing: Mirror Polished
• Frame mounted on wheels: Yes
• IQ-OQ Protocol: Available
• Material certificates: Available
• Packaging: Wooden Box
• Net weight: 80 kg
• Floor dimensions: 490 mm x 490 mm
• Inlet height: 1165 mm
