Electric actuator LD600

electromechanicallineardouble-acting

Overview

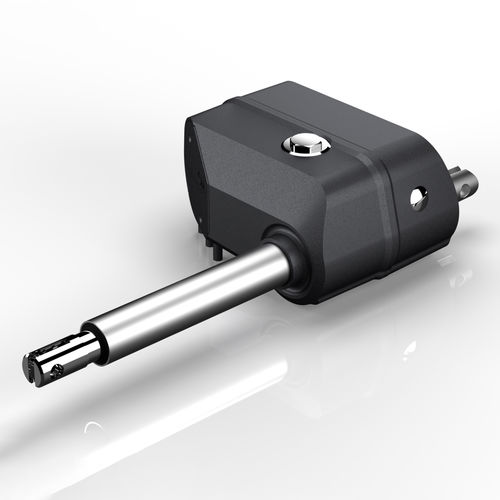

The LD600 linear actuator is a heavy-duty electromechanical actuator for indoor and outdoor industrial applications. It delivers up to 6000 N push and 4000 N pull, with a maximum stroke of 600 mm. Both end positions are infinitely adjustable on-site via a patented mechanical adjustment unit for straightforward commissioning.

Construction and protection
Die-cast aluminium housing, anodized aluminium profile tube and stainless steel lift tube provide high corrosion resistance. Rated IP69K (static) for suitability in outdoor environments and equipment requiring high-pressure or steam cleaning.

Control and options
Integrated adjustable limit switches allow precise end-positioning. Simple polarity connections ease installation. Optional features: position feedback (potentiometer analog measurement), end position signal, multiple cable lengths (1.5 m, 3 m, 5 m), emergency manual actuation, special strokes and special installation dimensions (adjustable ex works or by customer). Available for 12 VDC or 24 VDC supply.

Performance
Max push force: 6000 N; max pull force: 4000 N; max speed: 19 mm/s; duty cycle: 10% / 20 min; installation dimension (B): stroke + 200 mm (min. 300 mm).

Typical applications

• Agricultural machinery: adjusting cutting widths, moving spray arms
• Mobile & off-highway: metering spreaders, adjusting brushes
• Industrial & logistics: opening/closing lids, format adjustment of machines, dosing adjustment
• Marine: seat adjustment, opening/closing hatches, adjustable roofs, lowering/raising bathing platforms

Customer benefits

• Integrated control unit for simplified installation
• Compact installation dimensions
• Protection class IP69K for harsh environments
• Suitable for indoor and outdoor use
• Infinitely variable stroke length for flexible integration

Technical specifications

• Force: max. 6000 N push / 4000 N pull
• Speed: max. 19 mm/s
• Stroke length: max. 600 mm
• Installation dimension (B): stroke + 200 mm (min. 300 mm)
• Duty cycle: 10% / 20 min
• Position feedback: optional (potentiometer)
• Supply voltage: 12 VDC or 24 VDC
• Integrated limit switch: yes (adjustable)
• End position signal: optional
• Protection class: IP69K (static)
• Storage temperature: -40 °C to +80 °C
• Rod end: stainless steel, hole 10.1 mm
• Housing end: die-cast aluminium, hole 10.1 mm
• Lift tube material: stainless steel
• Housing material: die-cast aluminium
• Housing colour: similar to RAL 9005 (black)
• Connection: cable (open cable end) including plug (drive end)
• Cable lengths: 1.5 m, 3 m, 5 m
• Options: special strokes, special installation dimensions, emergency actuation
