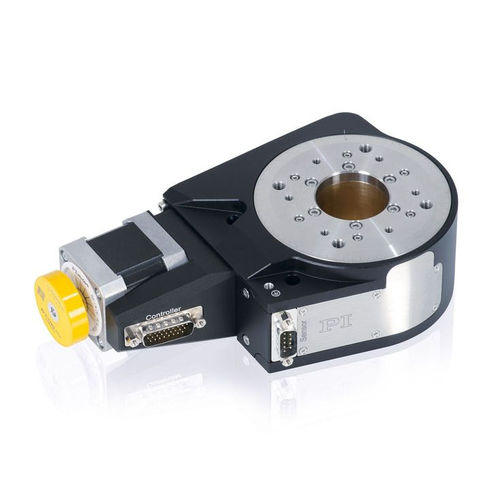

Rotary stage L-611 series

motorizedmulti-axishigh-accuracy

Unlimited travel range Very high resolution Maximum velocity 200°/s DC, BLDC, and stepper motors Direction-sensing reference switch Vacuum-compatible variants available Reference-class rotation stage High-precision positioning due to low-play preloaded worm gear. Preloaded pivot bearings for high run-out accuracy. Clear aperture with 35 mm Ø. Unlimited travel range in both directions of rotation. Noncontact reference switch. Compact multi-axis positioning systems possible with L-511 linear stages and L-310 Z stages. Vacuum-compatible product variants on request. Versions Low-vibration stepper motor DC motor with ActiveDrive DC servo motor Brushless DC motor Additional high-resolution optical angle measuring system, direct measuring Option: Measurement of the run-out accuracy and positioning accuracy Individual measurement logs available on request for wobble, axial, and radial creep. Please specify when ordering. Application fields Medical industry. Sample inspection. Precision microassembly. Measuring technology. Photonics. Vacuum.
