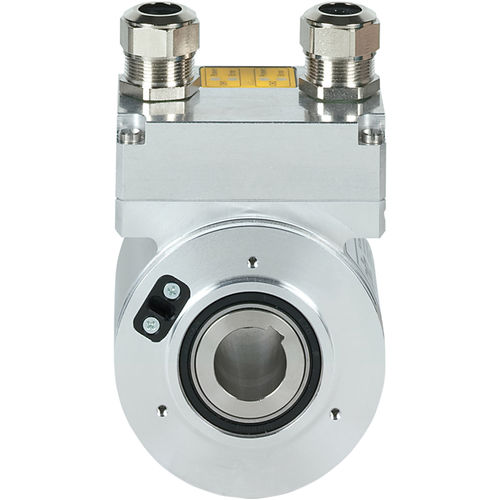

Absolute rotary encoder PSEN enc m1 eCAMmechanicalmulti-turnSSI
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- mechanical
- Construction
- multi-turn
- Output signal
- SSI
- Supply voltage
- DC
- Protection level
- standard
- Other characteristics
- redundant
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Absolute encoder, multi-turn, with two redundant SSI interfaces, continuous hollow shaft 20 mm.
General data
Approval - CE
Technical data
Electrical data
Power consumption DC - 3.6 W
Environmental data
Max. relative humidity - 98 %
Vibration to standard ... - EN 60068-2-6
Acc. shock to standard1 - 60g
Protection type standard - EN 60529
Protection type, housing -
Mechanical data
Connection type - Terminals
Housing material - Aluminium
Height dimension - 125 mm
Width dimension - 75 mm
Depth dimension - 75 mm
Net weight - 950 g
Gross weight - 1150 g
