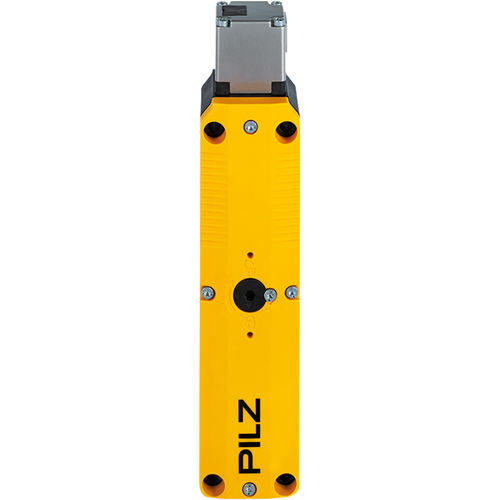

Safety gates system PSEN me5S NC-NC-NO.NC

Mechanical safety gate system PSENmech, interlock principle springforce, contacts interlocking 2 N/C, 1 N/O, contacts guard locking 1 N/C, supply voltage 24 V AC/DC. Technical data Electrical data Supply voltage (V) - 24 24 Type of supply voltage U1 - AC/DC Relay outputs Utilisation cat. AC15/DC13sta. - EN 60947-5-1 Voltage AC15 safety cont. - 240 Max. current AC15 safety cont. - 1.5 Voltage DC13 safety cont. - 250 Environmental data Ambient temperature - -25 55 Overvoltage category - II Protection type, housing - Mechanical data Holding force - 1500 Height dimension - 192 Width dimension - 42 Depth dimension - 44 Net weight - 489 Gross weight - 541 Environment RoHS directive - 2011/65/EU 2015/863/EU RoHS conformity - yes RoHS exceptions - no REACh compliance - Contains no SVHC substances WEEE classifikation (08/2018) - 5 devices (feed size < 50cm)
