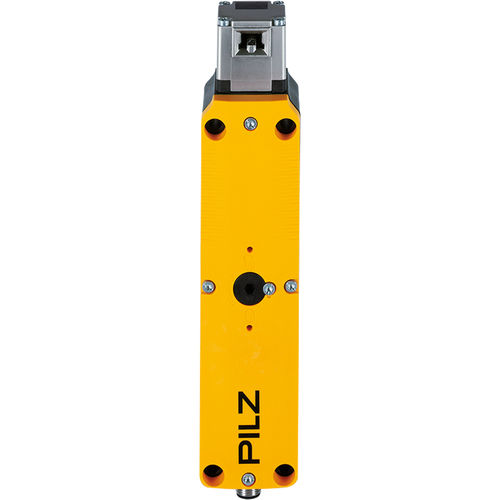

Safety gates system PSEN me5M NC.NC

Mechanical safety gate system PSENmech, with M12 connection 5-pin, interlock principle magnetic force, contacts interlocking 1 N/C,contacts guard locking 1 N/C, supply voltage 24 V AC/DC. Technical data Electrical data Supply voltage (V) - 24 24 Type of supply voltage U1 - AC/DC Relay outputs Utilisation cat. AC15/DC13sta. - EN 60947-5-1 Voltage DC13 safety cont. - 24 Environmental data Ambient temperature - -25 55 Overvoltage category - II Protection type, housing - Mechanical data Holding force - 1500 Connection type - M12, 5-pin male Height dimension - 192 Width dimension - 42 Depth dimension - 44 Net weight - 489 Gross weight - 541 Environment RoHS directive - 2011/65/EU 2015/863/EU RoHS conformity - yes RoHS exceptions - yes RoHS except.s acc. to direct. - 6c REACh compliance - contains min. 1 SVHC-substance REACh included substances - Lead %-part of the pollutant - > 0,1 CAS No. - 7439-92-1 WEEE classifikation (08/2018) - 5 devices (feed size < 50cm)
