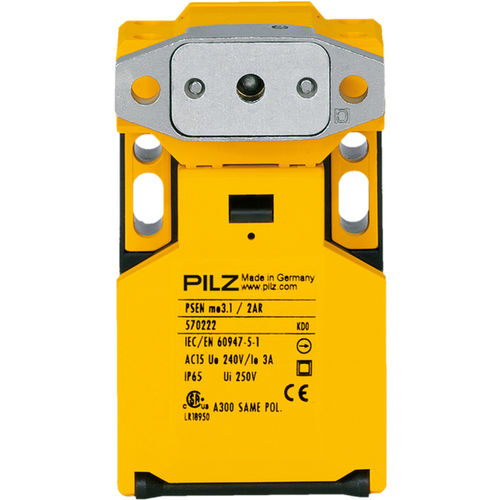

Single-pole switch PSEN me3.1 / 2ARACmechanicalsafety
Add to favorites
Compare this product
Characteristics
- Number of poles
- single-pole
- Other characteristics
- AC, mechanical, safety, actuator
- Primary current
10 A
- Voltage
240 V
- Operating temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)- Width
52 mm
(2 in)- Height
90 mm
(3.5 in)
Description
Mechanical safety switch, with radius actuator, contacts: 2 N/C.
Technical data
Relay outputs
Utilisation cat. AC/DC1 stand. - EN 60947-4-1
Utilisation cat. AC15/DC13sta. - EN 60947-5-1
Environmental data
Protection type, housing -
Mechanical data
Connection terminal - Screw terminal
Terminal style - fixed
Net weight - 173 g
Gross weight - 236 g
Environment
RoHS directive - 2011/65/EU
2015/863/EU
RoHS conformity - yes
RoHS exceptions - yes
RoHS except.s acc. to direct. - 6a
6c
REACh compliance - contains min. 1 SVHC-substance
REACh included substances - Lead
%-part of the pollutant - > 0,1
CAS No. - 7439-92-1
WEEE classifikation (08/2018) - 5 devices (feed size < 50cm)
