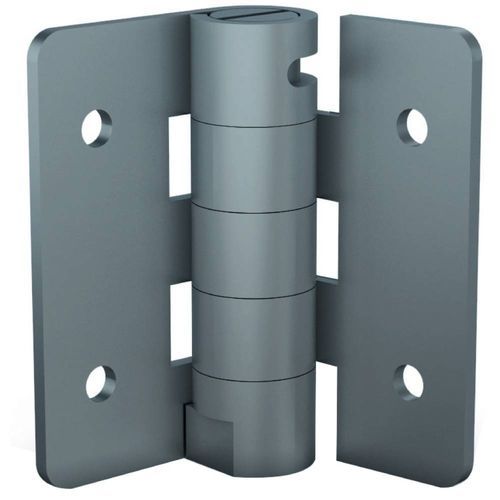

Pivot hinge 75-1-0003stainless steelscrew-indoor
Add to favorites
Compare this product
Characteristics
- Type
- pivot
- Material
- stainless steel
- Installation
- screw-in
- Applications
- door
- Other characteristics
- damper, integrated soft-close mechanism
- Length
80 mm
(3.15 in)- Width
40 mm
(1.575 in)- Thickness
3 mm
(0.118 in)- Torque
Min.: 2.2 Nm
(1.62 ft.lb)Max.: 3 Nm
(2.21 ft.lb)
Description
- Soft-close dampening hinge: soft-close damper keeps lid from slamming shut when the hinge is put in the closed position.
- Damper working direction: shown by the arrow in the drawing.
- Do not force the door to close faster in damper effective direction. It can cause damage to the product.
- When the door opening angle is small, the dampers may not work smoothly.
- Torque moment (for one hinge): 2.2 to 3.0 N.m.
- Torque calculation:
Torque (N.m) = L (m) x 1/2 x W (kg) x 9.8 with:
• L = door height in metre.
• W = door weight in kilo.
- Operating temperature: 0 to + 40°C.
- Soft close of a door (vertical application): door closing system.
